The XMS must access all management ports on the X-Brick Storage Controllers, and must be accessible by any GUI/CLI client host machine.

References: Introduction to the EMC XtremIO STORAGE ARRAY (April 2015), page 48

The volume size must be specified in MB, GB, TB, and not in KB.

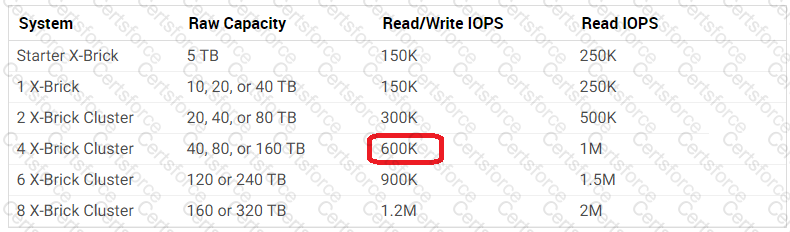

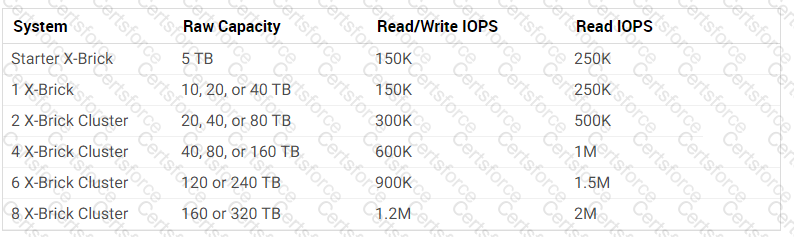

XtremIO clusters with 60 TB of physical usable flash capacity can now logically support 360 TB or more of capacity at typical 6:1 data reduction (deduplication plus compression) ratios. Here we have a 4:1 reduction ratio, so 25 TB would be enough. The 250,000 IOP requirments indicates that we need at least two Bricks.

References: https://store.emc.com/en-us/Product-Family/EMC-XtremIO-Products/EMC-XtremIO-All-Flash-Scale-Out-Array/p/EMC-XtremIO- Flash-Scale-Out

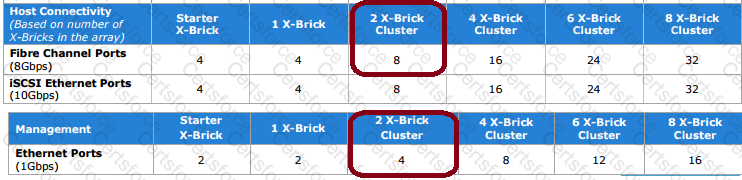

EMC XTREMIO 4.0 SYSTEM SPECIFICATIONS

References:http://www.aecl.com/AECWeb/media/Assets/PDF/h12451-xtremio-4-system-specifications-ss.pdf

The XtremIO's RESTful API allows HTTPS-based interface for automation, orchestration, query and provisioning of the system. With the API, third party applications can be used to control and fully administer the array.

Normally you would access the API using some form of programming/scripting language, such as Python or Perl. However for the purposes of learning or testing concepts there are a number of tools that work better, such as HTTPRrequester and curl.

* Curl is a command-line tool that exists in all Linux distributions, and is available for most other Unix OSes as well as Windows.

To use curl to access XtremIO you’ll need to pass it a few options, such as the username/password to access the array (any valid account on the XtremIO XMS will work), the URL of the API, and potentially a few options such as -k to tell curl not to validate the SSL certificate (presuming you don’t have a valid certificate installed), and -s (silent) to stop curl displaying it’s progress as it downloads the response.

* HTTPRequester is a browser extension that is available for both Chrome and Firefox.

As with for curl, you’ll need to provide a username/password, which is done by clicking on the “Authentication…” box, which adds two boxes below the URL for the username and the password.

References:https://blog.docbert.org/using-the-xtremio-rest-api-part-1/

Proceed with filesystem aging by doing random overwrite cycles.

References: https://store.emc.com/en-us/Product-Family/EMC-XtremIO-Products/EMC-XtremIO-All-Flash-Scale-Out-Array/p/EMC-XtremIO-Flash-Scale-Out

Disk service time T(s) = 32 ms (service time for one I/O).

Response time T(r) is calculated as: T(s) / (1 – Utilization), which here calculates to 32 ms/ (1-0.75) = 128 ms.

References:https://community.emc.com/thread/145100?tstart=0

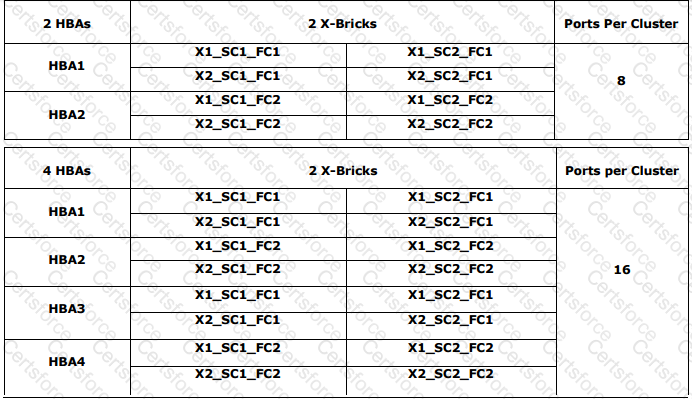

The recommended maximum number of paths to storage ports per host is 16 as per the table below.

References:https://www.emc.com/collateral/white-papers/h14475-wp-xtremio-brocade-best-practices.pdf?isPublic=false , page 12
