Questions no:Q34

Verified Answer:D.ds dd create

Step by Step Comprehensive Detailed Explanation with References:

To create a distributed virtual volume from specified storage volumes in Dell VPLEX, the command used is ds dd create. This command stands for “distributed storage distributed device create” and is part of the VPLEX CLI (Command Line Interface) commands that manage distributed devices across clusters in a VPLEX Metro environment.

Command Usage: The ds dd create command is used to create a distributed device, which is a virtual volume that spans across two VPLEX clusters, providing high availability and data mobility1.

Distributed Virtual Volume: A distributed virtual volume in VPLEX is a volume that is accessible from both clusters in a VPLEX Metro configuration.It allows for simultaneous read and write operations from both locations1.

Creating the Volume: The process involves specifying the storage volumes from each cluster that will be part of the distributed device.The command then creates a virtual volume that combines these storage volumes into a single distributed device1.

High Availability: The resulting distributed virtual volume can be used in scenarios that require high availability, such as active-active data center configurations.It ensures that data is accessible even if one of the clusters becomes unavailable1.

CLI Command Structure: The VPLEX CLI commands follow a structured format where the initial letters indicate the scope and type of operation.In this case, ds indicates distributed storage, and dd indicates a distributed device, which together specify the creation of a distributed virtual volume1.

By using the ds dd create command, administrators can effectively set up distributed virtual volumes in a VPLEX Metro environment, leveraging the system’s capabilities for data availability and mobility.

Data mobility in VPLEX is used for various operations, including storage volume defragmentation. Here’s the explanation:

Data Mobility: This operation is designed to move data within the VPLEX system, which can include moving data from fragmented storage volumes to contiguous storage, effectively defragmenting the storage1.

Device Mobility: Device mobility is typically used for moving devices within the VPLEX cluster or across clusters but is not specifically for defragmentation purposes.

Virtual Volume Mobility: While virtual volume mobility can move virtual volumes within the VPLEX environment, it does not directly address storage volume defragmentation.

Extent Mobility: Extent mobility involves moving extents, which are segments of storage within a volume, but this is not the operation used specifically for defragmentation.

Defragmentation Process: During defragmentation, data mobility would be used to relocate data from fragmented extents to a set of contiguous extents, thereby optimizing the layout of the data on the physical storage and improving performance1.

VPLEX Administration Guides: For detailed procedures on how to perform data mobility operations, including defragmentation, administrators should refer to the VPLEX Administration Guides2.

By using data mobility operations, administrators can manage and optimize the storage within the VPLEX system, ensuring efficient use of resources and maintaining performance.

In a VPLEX Metro environment, the write rate on distributed volumes has a direct impact on VPLEX performance with respect to WAN bandwidth. Here’s how:

Distributed Volumes: Distributed volumes in VPLEX Metro span across two geographically separated clusters and are designed to provide continuous availability and data mobility1.

Write Operations: Write operations on distributed volumes require data to be written to both clusters before an acknowledgment is sent back to the host.This ensures data consistency across both sites2.

WAN Bandwidth: The Wide Area Network (WAN) bandwidth between the two clusters is a critical factor in the performance of these write operations.If the WAN bandwidth is insufficient, it can lead to increased latency and reduced throughput3.

Performance Impact: With only half the available WAN-COM paths, VPLEX can exceed bandwidth limitations on the existing WAN-COM paths, causing severe latency impacting the remote writes of distributed devices3.

Best Practices: VPLEX best practices indicate that the round-trip time (RTT) between VPLEX clusters shouldn’t exceed 5 ms to provide the best performance, and an RTT of 1 ms is recommended for a campus-wide network2.

By managing the write rate on distributed volumes and ensuring adequate WAN bandwidth, VPLEX Metro can maintain high performance and meet the required service levels for data availability and accessibility.

When a director fails and is removed from a VPLEX cluster, the global cache size decreases. This is because each director contributes to the total global cache available in the VPLEX cluster. Here’s the explanation:

Global Cache: The global cache in a VPLEX system is a shared resource that is used by all directors in the cluster to cache data for improved performance1.

Director Contribution: Each director within the VPLEX cluster has its own local cache, which collectively forms the global cache.When a director is operational, its cache is part of the global cache pool1.

Director Failure: If a director fails, its cache is no longer available to the cluster.As a result, the total size of the global cache is reduced by the amount that was contributed by the failed director1.

Removal from Cluster: When the failed director is physically removed from the cluster, its cache is permanently removed from the global cache pool, resulting in a decrease in the total global cache size1.

Impact on Performance: The reduction in global cache size may impact the performance of the VPLEX system, as there is less cache available for data storage and retrieval operations1.

System Architecture: VPLEX architecture allows for multiple director failures without loss of access to data down to a single director, but the global cache size will decrease with each director failure1.

By understanding the role of each director’s cache in contributing to the global cache, administrators can anticipate the effects of director failures on the overall performance of the VPLEX system.

The batch-migrate check-plan command in Dell VPLEX is used to determine if there is currently enough back-end bandwidth to carry out a migration plan. This is crucial to ensure that the migration does not negatively impact the performance of other operations within the VPLEX environment.

Back-End Bandwidth: The back-end bandwidth refers to the data transfer capacity between the VPLEX and its connected storage arrays.Adequate back-end bandwidth is essential for migration operations to prevent bottlenecks1.

Migration Plan: Before executing a migration plan created by the batch-migrate create-plan command, it is important to check that the system has the necessary resources, such as sufficient back-end bandwidth, to support the migration without disruption1.

Command Function: The batch-migrate check-plan command analyzes the current system load and the expected load from the migration to determine if the migration can proceed without exceeding the system’s bandwidth capabilities1.

Ensuring Performance: By verifying the availability of back-end bandwidth, the command helps to ensure that the migration will not interfere with the normal operations of the VPLEX system, maintaining overall system performance1.

Pre-Migration Assessment: This command is part of the pre-migration assessment process, which is critical for planning and executing migrations effectively and efficiently within the VPLEX environment1.

The batch-migrate check-plan command is an important tool for administrators to validate the feasibility of migration plans and to ensure that migrations do not adversely affect the performance of the VPLEX system.

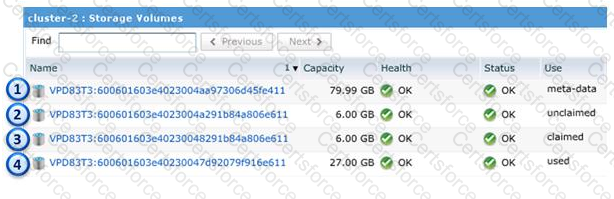

Based on the information provided in the image, here is the explanation:

Storage Volume 1 (OB): This volume is listed with a capacity of 79.99 GB, health status OK, and status OK. Its use is indicated as ‘meta-data’, which typically means it is reserved for system or metadata use and not available for creating extents.

Storage Volume 2 (OA): This volume has a capacity of 6.00 GB, health status OK, and status OK. Its use is indicated as ‘unclaimed’, which suggests that it has not been allocated for any specific purpose yet and could potentially be used for creating an extent.

Storage Volume 3 (OD): This volume also has a capacity of 6.00 GB, health status OK, and status OK. However, its use is indicated as ‘claimed’, meaning it has already been allocated and is not available for creating new extents.

Storage Volume 4 (OC): The final volume has a capacity of 27.00 GB, health status OK, and status OK. Its use is indicated as ‘used’, which implies that it is currently in use and not available for creating new extents.

Based on the above analysis, the storage volume that is available to be used for the creation of an extent isStorage Volume 2 (OA). It is the only volume marked as ‘unclaimed’ and therefore available for new configurations such as creating extents.

Expanding a virtual volume using the Storage Volume expansion method is a valid option when the virtual volume is mapped 1:1 to the underlying storage volume. This method is suitable when each virtual volume corresponds directly to a single storage volume on the backend array, and there is a need to expand the volume’s capacity.

1:1 Mapping: A 1:1 mapping means that there is a direct relationship between a virtual volume in VPLEX and a single storage volume on the backend storage array.This allows for a straightforward expansion process as any increase in the size of the backend volume can be reflected in the virtual volume1.

Storage Volume Expansion: The Storage Volume expansion method involves increasing the size of the backend storage volume first.This is typically done through the storage array’s management interface1.

VPLEX Recognition: Once the backend storage volume is expanded, VPLEX must recognize the new size.This may require rescanning the storage volumes within VPLEX to detect the changes1.

Virtual Volume Expansion: After VPLEX recognizes the increased size of the storage volume, the corresponding virtual volume can be expanded to utilize the additional capacity.This is done within the VPLEX management interface1.

Exclusion of Other Options: The other options listed, such as a virtual volume having minor problems, being a metadata volume, or previously expanded by adding extents or devices, are not typically associated with the Storage Volume expansion methD.These scenarios may require different approaches or may not be suitable for expansion using this method1.

By ensuring that the virtual volume is mapped 1:1 to the underlying storage volume, administrators can effectively utilize the Storage Volume expansion method to increase the capacity of virtual volumes in a VPLEX environment.

Physical Port Numbering: Physical ports on I/O modules are numbered to provide a unique identifier for each port. This numbering is important for configuration, management, and troubleshooting purposes.

Director Modules: In VPLEX hardware, director modules are key components that manage data flow and connectivity. Each director module contains I/O modules with multiple physical ports.

Numbering Convention: The numbering convention for physical ports may start from either the top or the bottom of the I/O module, depending on the design specifications provided by the manufacturer1.

VS6 VPLEX Hardware: For the VS6 VPLEX hardware, the specific numbering of physical ports for each I/O module would be detailed in the official Dell VPLEX documentation, which would provide diagrams and descriptions of the hardware components2.

Configuration and Setup: Understanding the physical port numbering is crucial for the proper configuration and setup of the VPLEX system, as it affects zoning, mapping, and other storage network configurations3.

Since the exact numbering of physical ports for each I/O module in VS6 VPLEX hardware is not provided in the search results, it is recommended to consult the official Dell VPLEX documentation or contact Dell support for verified information.

-date and official guidance.
