Step by Step Comprehensive Detailed Explanation:

Solutions Enabler (SE) 10 introduces some changes to the output format of certain commands for better clarity and consistency. When querying a PowerMax 2000 (which is based on older VMAX architecture) using symcfg list -dir, you might encounter differences in the output compared to previous SE versions.

To ensure backward compatibility and see the output in the familiar format, you need to use the -mode v9x argument. This tells SE 10 to display the output in the style of SE 9.x, which is compatible with the PowerMax 2000.

Why other options are incorrect:

B. Look for CPU instead of Cores as these have been rebranded...:While there might be terminology changes, this is not the primary reason for the output difference.

C. Specify the full 12-digit serial number with -sid so SE 10 understands...:The serial number is not directly related to the output format.

D. Use syraconfigure -version -dir as in SE 10 support for outputs...:The syraconfigure command is not the correct command for this purpose.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides detailed information about the symcfg command and its options, including the -mode argument for backward compatibility. You can find this document on the Dell Support website by searching for "Solutions Enabler CLI User Guide."

Okay, I understand. We need to perform a system health check and review the compliance status for a PowerMax array with SID ending in 1762 using the Unisphere simulator, then generate and download a compliance report.

Here's how you would do it in the Unisphere for PowerMax simulator, based on the provided image and common Unisphere functionality:

Steps:

1. Launch the Simulator and Access the System Health View

Open Unisphere for PowerMax in your web browser.

You should already be logged in to the simulator, with the PowerMax array with SID 1762.

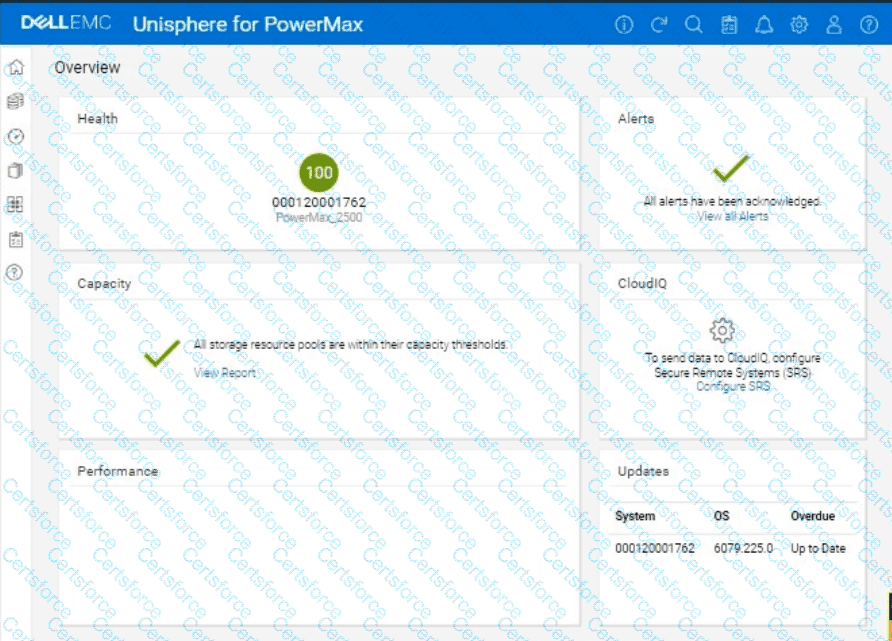

The initialOverviewpage (as shown in the image) provides a good starting point for a health check.

2. Analyze the Overview Page

Health:The "Health" section displays the overall health status of the array. In the image, it shows "100" with a green checkmark, which indicates that the array is currently healthy.

Alerts:The "Alerts" section will show if there are any active alerts. In the image, it shows a green checkmark and "All alerts have been acknowledged," meaning no unacknowledged alerts. You can click "View all Alerts" to see the alert history.

Capacity:The "Capacity" section indicates whether storage resource pools are within their capacity thresholds. The green checkmark and "All storage resource pools are within their capacity thresholds" message indicate that capacity is currently healthy. You can click "View Report" for more details.

Performance:The "Performance" section is not detailed in the image, but it would typically provide a quick overview of the array's performance.

Updates:The "Updates" section shows the system's PowerMaxOS code level and whether any updates are overdue. In the image, it shows that the system is "Up to Date."

3. Navigate to the Compliance Section

In the left-hand navigation pane, click onData Protectionto expand it.

Click onComplianceunder Data Protection.

4. Review Compliance Status

The Compliance view will show you the overall compliance status of your storage groups against the defined compliance policies.

Review the compliance status for each Storage Group.

Look for any storage groups that are marked as "Non-Compliant."

5. Generate the Compliance Report

Click on"Generate Report"(or a similarly worded button) within the Compliance view. This might also be represented as an icon in the simulator.

Select all Storage GroupsSince we need to generate the report for all storage groups.

Report Format:Choose the desired report format. Common options are usually PDF, CSV, or HTML. For this simulation, let's assume PDF is available and select it.

Download the Report:Once the report is generated, there will typically be a"Download"or similar option to save the report to your local system. Click it to download the compliance report.

6. Further Health Checks (Optional):

Detailed Performance Metrics:You can navigate to thePerformancesection in the left navigation pane (under "Dashboard") to view more detailed performance metrics for various components of the array.

Hardware Status:You can typically find a "Hardware" section (or similarly named section) that provides information about the physical components of the array (e.g., DAEs, directors, ports).

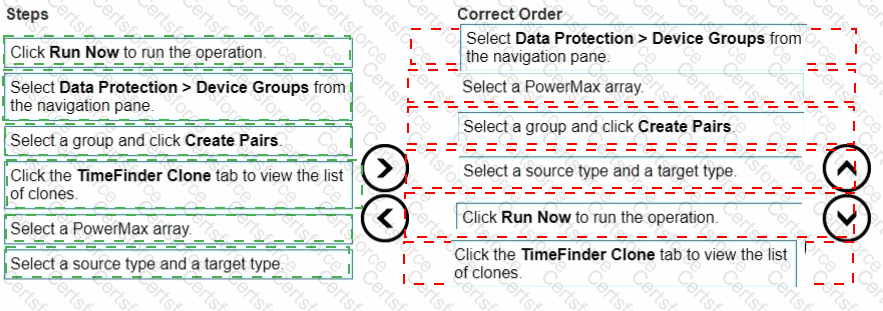

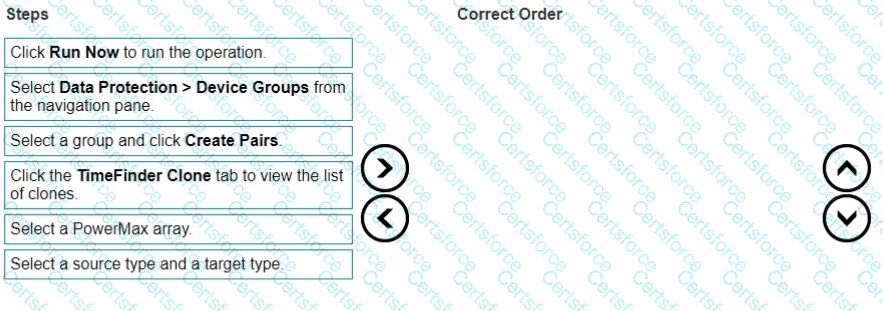

Here's the correct sequence of steps along with explanations:

Correct Order:

Select Data Protection > Device Groups from the navigation pane.

Why:This is the starting point within Unisphere for PowerMax. You need to navigate to the section where device groups are managed and where TimeFinder operations are initiated.

Select a PowerMax array.

Why:In an environment with multiple PowerMax arrays, you must specify the array on which you want to create the clone copy sessions.

Select a group and click Create Pairs.

Why:You are selecting the specific device group that will be the source for the clone operation and choosing the "Create Pairs" action to initiate the clone session creation process. This implies you are creating a clone from an existing group of devices.

Select a source type and a target type.

Why:This step defines the characteristics of the source and target devices for the clone session. This could involve selecting from different storage groups, specifying thin or thick provisioning, or other relevant settings. Note that in a clone context, the "target type" often refers to how the clone will be linked to the source (e.g., a full copy or a linked target).

Click Run Now to run the operation.

Why:After configuring all the settings for the clone session, this action triggers the actual creation of the clone pairs based on the selected source and target types and other parameters.

Click the TimeFinder Clone tab to view the list of clones.

Why:Once the operation has been initiated, this is how you would verify that the clone sessions were created successfully and monitor their status.

Select Data Protection > Device Groups from the navigation pane.

Select a PowerMax array.

Select a group and click Create Pairs.

Select a source type and a target type.

Click Run Now to run the operation.

Click the TimeFinder Clone tab to view the list of clones.
