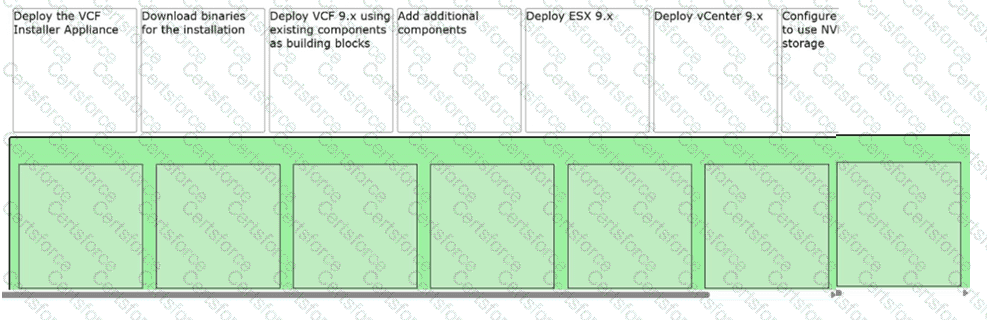

Deploy ESX 9.x

Configure to use NVMe storage

Deploy vCenter 9.x

Deploy the VCF Installer Appliance

Download binaries for the installation

Deploy VCF 9.x using existing components as building blocks

Add additional components

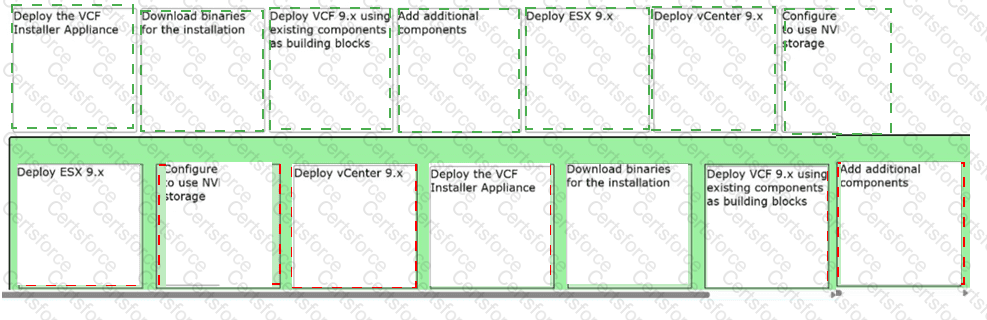

The sequence begins with deploying ESX 9.x on the blade hosts because the hosts are the physical foundation for the future management domain. Since there is no local storage beyond the operating system and the external array supports NVMe/TCP only, the hosts must then be configured to use NVMe storage before vCenter is deployed. This provides the required shared datastore for the vCenter deployment and for later VCF management component placement. After the NVMe storage is accessible, vCenter 9.x is deployed to manage the ESX hosts and form the existing vSphere building block. The convergence process then moves into the VCF workflow: deploy the VCF Installer Appliance, download the required binaries to the installer appliance, and deploy VCF 9.x by using the existing vCenter and ESX hosts as starting building blocks. Because Aria Operations is not currently deployed, VCF Installer deploys the required missing components during the converge process, and remaining additional components are added after the core platform deployment is complete. Reference topics: Converging Existing Virtual Infrastructure, VCF Installer, Existing Components as Building Blocks, NVMe Storage Preparation.
