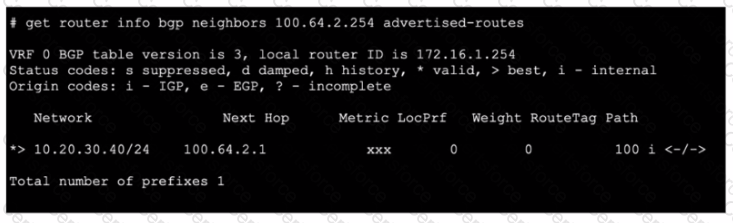

BGP Advertisement:The output from the commandget router info bgp neighbors 100.64.2.254 advertised-routesshows the routes that the local router is advertising to its BGP neighbor.
Output Analysis:
TheNetworkcolumn lists the networks being advertised.
TheNext Hopcolumn indicates the next-hop IP address for these routes.
The line*> 10.20.30.40/24 100.64.2.1indicates that the 10.20.30.40/24 network is being advertised with a next-hop of 100.64.2.1.
Local Router's Role:Since the output lists the advertised routes, it means that the local router (with router ID 172.16.1.254) is advertising the 10.20.30.40/24 network to its neighbor 100.64.2.254.
This confirms that the local router is indeed advertising the specified network to its BGP neighbor.
Chosen Answer:
