(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

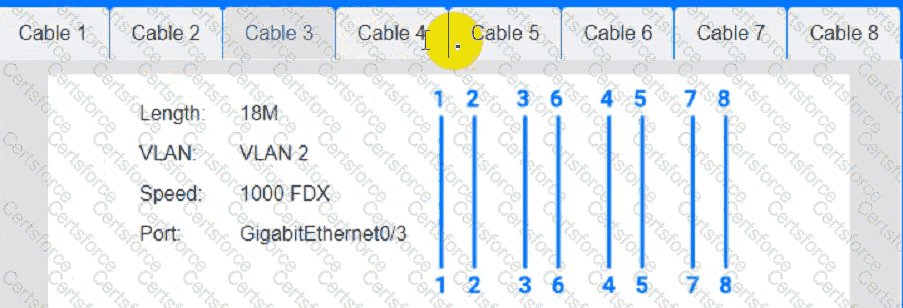

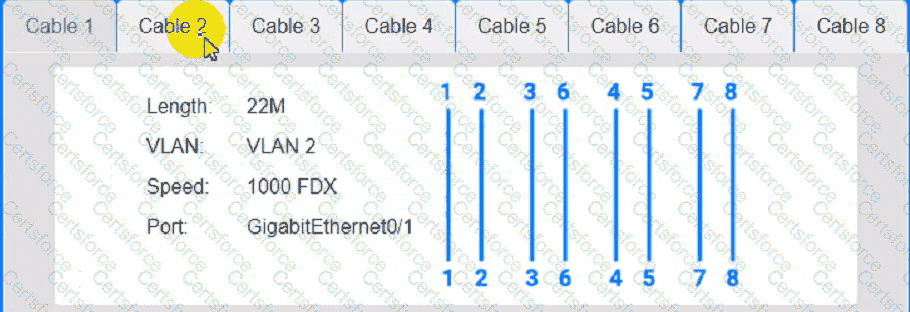

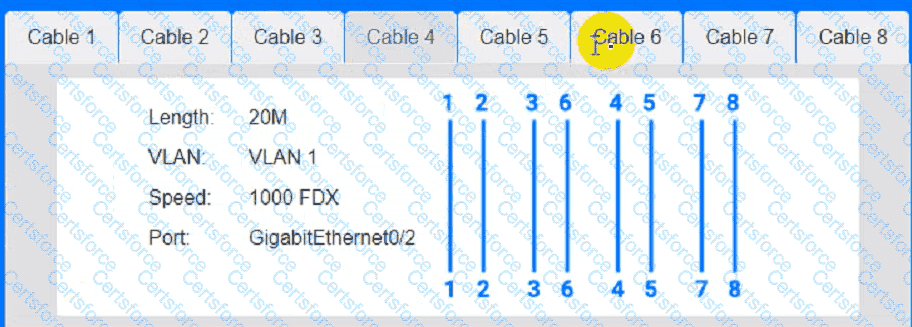

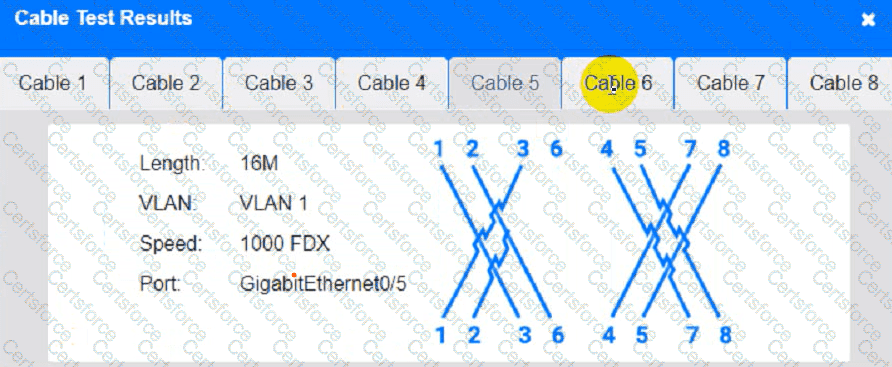

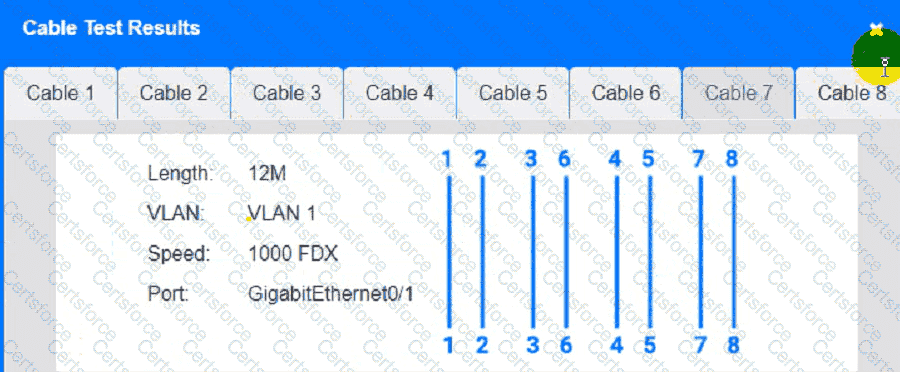

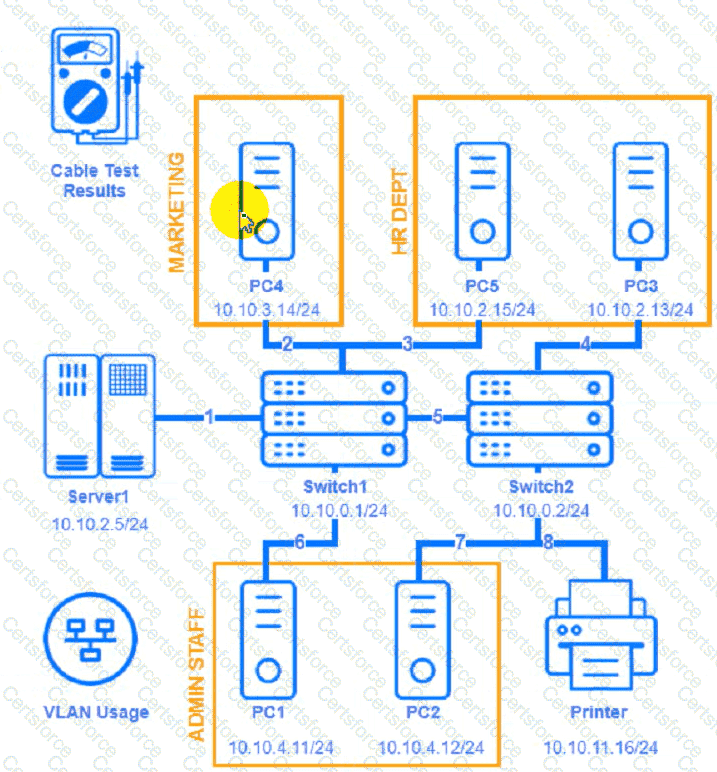

To troubleshoot all the network components and review the cable test results, you can use the following steps:

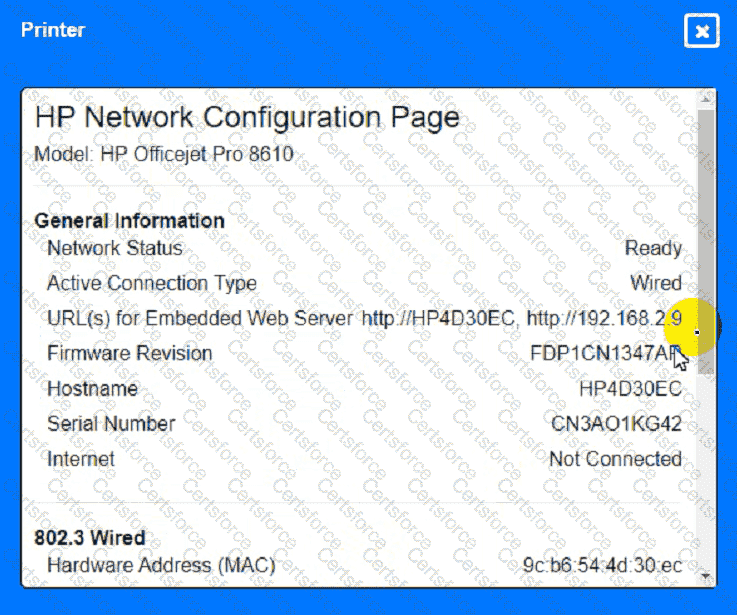

Click on each device and cable to open its information window.

Review the information and identify any problems or errors that may affect the network connectivity or performance.

Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

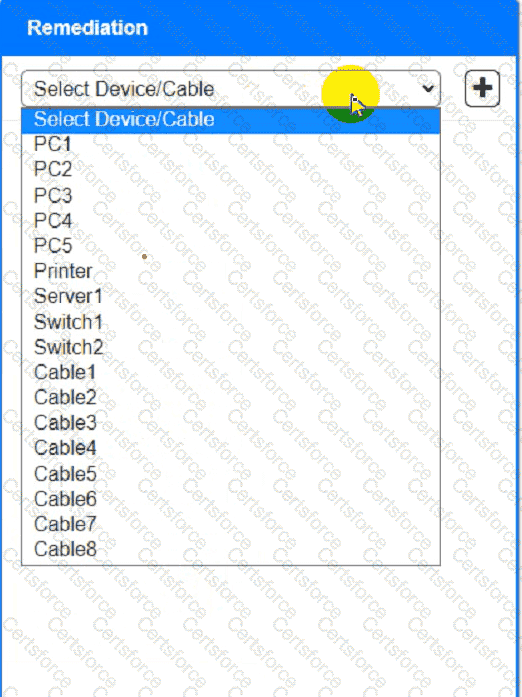

Fill in the remediation form using the drop-down menus provided.

Here is an example of how to fill in the remediation form for PC1:

The component with a problem is PC1.

The problem is Incorrect IP address.

The solution is Change the IP address to 192.168.1.10.

You can use the same steps to fill in the remediation form for other components.

To enter commands in each device, you can use the following steps:

Click on the device to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.

Enter the command ping < IP address >  to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace < IP address > with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Enter the command tracert < IP address >  to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace < IP address > with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Here is an example of how to enter commands in PC1:

Click on PC1 to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.

Enter the command ping 192.168.1.1 to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.

Enter the command tracert 192.168.1.1 to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.

You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.
