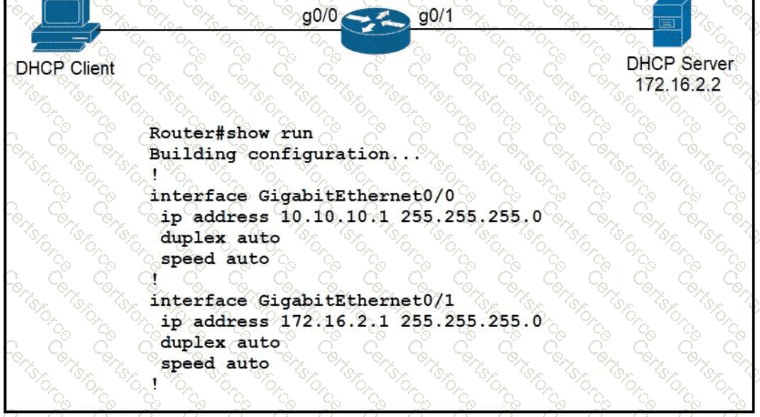

An engineer is configuring a new router on the network and applied this configuration. Which additional configuration allows the PC to obtain its IP address from a DHCP server?
A.
Configure the ip dhcp relay information command under interface Gi0/1.
B.
Configure the ip dhcp smart-relay command globally on the router
C.
Configure the ip helper-address 172.16.2.2 command under interface Gi0/0
D.
Configure the ip address dhcp command under interface Gi0/0
Configure the ip helper-address 172.16.2.2 command under interface Gi0/0. Cisco routers select forwarding paths by longest-prefix match first, then administrative distance and metric when comparable routes compete. Cisco CCNA 200-301 v1.1 includes this under IP Services, where the exam expects engineers to recognize the device behavior that actually produces the required outcome. The question is best solved by reading the operational clue rather than choosing a familiar acronym. The wrong choices either do not match the destination, use the wrong next hop, or fail to provide the intended primary/backup behavior. In a production network, the wrong choice would normally create an outage, leave a management or security gap, or send troubleshooting toward the wrong subsystem. The selected answer is the one that matches the control-plane, data-plane, wireless, security, services, or automation mechanism described in the question. That is why it remains the verified answer for this item.
