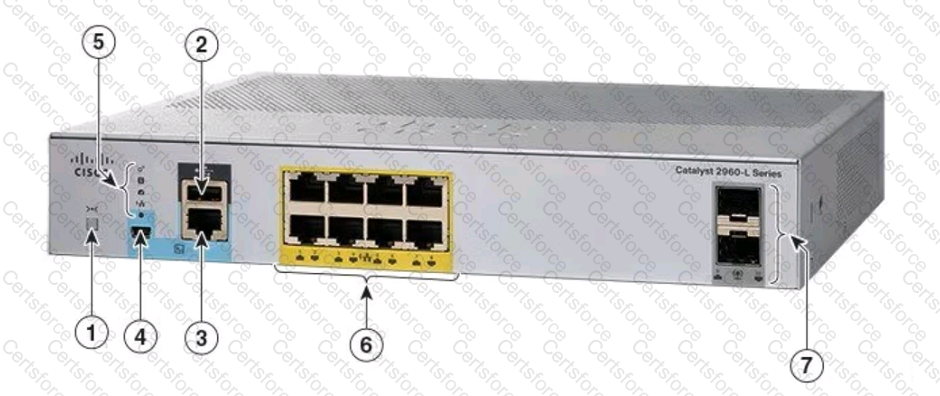

In the provided image of the Cisco PoE switch, the ports identified with number 6 are the standard RJ-45 Ethernet ports typically found on switches that provide both data connectivity and Power over Ethernet (PoE). PoE ports are designed to supply power to devices such as IP phones, wireless access points, and other PoE-enabled devices directly through the Ethernet cable.

Ports:

•2: Console port (for management and configuration)

•3 and 4: Specific function ports (often for management)

•6: RJ-45 Ethernet ports (capable of providing PoE)

•7: SFP ports (for fiber connections, typically do not provide PoE)

Thus, the correct answer is C. Ports identified with number 6.

References :=

•Cisco Catalyst 2960-L Series Switches Data Sheet

•Cisco PoE Overview

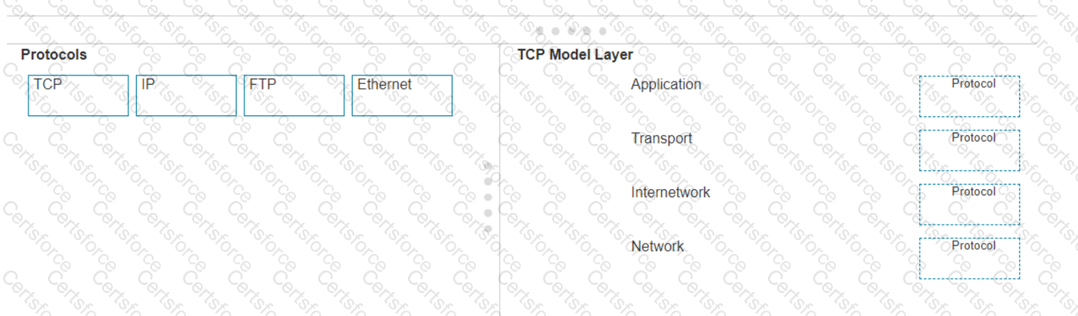

Here’s how each protocol aligns with the correct TCP/IP model layer:

TCP (Transmission Control Protocol): This protocol belongs to theTransportlayer, which is responsible for providing communication between applications on different hosts1.

IP (Internet Protocol): IP is part of theInternetworklayer, which is tasked with routing packets across network boundaries to their destination1.

FTP (File Transfer Protocol): FTP operates at theApplicationlayer, which supports application and end-user processes.It is used for transferring files over the network1.

Ethernet: While not a protocol within the TCP/IP stack, Ethernet is associated with theNetwork Interfacelayer, which corresponds to the link layer of the TCP/IP model and is responsible for the physical transmission of data1.

The TCP/IP model layers are designed to work collaboratively to transmit data from one layer to another, with each layer having specific protocols that perform functions necessary for the data transmission process1.

TCP:

TCP Model Layer: Transport

Explanation: The Transport layer is responsible for end-to-end communication and error handling. TCP (Transmission Control Protocol) operates at this layer to provide reliable, ordered, and error-checked delivery of data.

IP:

TCP Model Layer: Internetwork

Explanation: The Internetwork layer, also known as the Internet layer, is responsible for logical addressing and routing. IP (Internet Protocol) operates at this layer to route packets across networks.

FTP:

TCP Model Layer: Application

Explanation: The Application layer provides network services to applications. FTP (File Transfer Protocol) operates at this layer to transfer files between computers over a network.

Ethernet:

TCP Model Layer: Network

Explanation: The Network layer, also known as the Link layer in the TCP/IP model, is responsible for physical addressing and access to thephysical medium. Ethernet operates at this layer to provide the physical and data link functions.

Transport Layer: This layer is responsible for providing communication services directly to the application processes running on different hosts. TCP is a core protocol in this layer.

Internetwork Layer: This layer is responsible for logical addressing, routing, and packet forwarding. IP is the primary protocol for this layer.

Application Layer: This layer interfaces directly with application processes and provides common network services. FTP is an example of a protocol operating in this layer.

Network Layer: In the TCP/IP model, this layer includes both the data link and physical layers of the OSI model. Ethernet is a protocol used in this layer to define network standards and communication protocols at the data link and physical levels.

References:

TCP/IP Model Overview: Cisco TCP/IP Model

Understanding the TCP/IP Model: TCP/IP Layers

Out-of-band management

When a Cisco switch is not accessible from the network, the recommended out-of-band method to access its running configuration is through theconsole port. Out-of-band management involves accessing the network device through a dedicated management channel that is not part of the data network.The console port provides direct access to the switch’s Command Line Interface (CLI) without using the network, which is essential when the switch cannot be accessed remotely via the network12.

References:=

Out-of-band (OOB) network interface configuration guidelines

Out of band management configuration

=========================

IPv6 addresses can be compressed by removing leading zeros and replacing consecutive groups of zeros with a double colon (::). Here’s how to compress the address 2001:0db8:0000:0016:0000:001b:2000:0056:

Remove leading zeros from each segment:

2001:db8:0000:0016:0000:001b:2000:0056 becomes 2001:db8:0:16:0:1b:2000:56

Replace the longest sequence of consecutive zeros with a double colon (::). In this case, the two consecutive zeros between the 16 and 1b:

2001:db8:0:16::1b:2000:56

Thus, the most compressed valid format of the IPv6 address is 2001:db8:0:16::1b:2000:56.

References:=

Cisco Learning Network

IPv6 Addressing (Cisco)

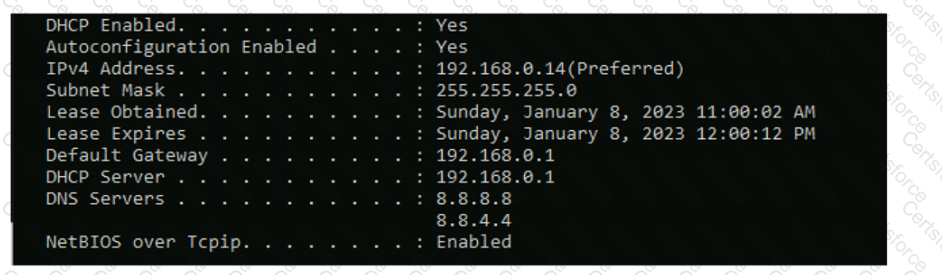

To determine if you can reach the router, you should use thepingcommand followed by the IP address of the router. Thepingcommand is a network utility used to test the reachability of a host on an Internet Protocol (IP) network and to measure the round-trip time for messages sent from the originating host to a destination computer.

The Default Gateway in theipconfigresults is typically the router’s IP address in a home or small office network. In this case, the Default Gateway is192.168.0.1, which is the address you would ping to check connectivity to the router.

References:=

How to Use the Ping Command

Testing Network Connectivity with the Ping Command

=========================

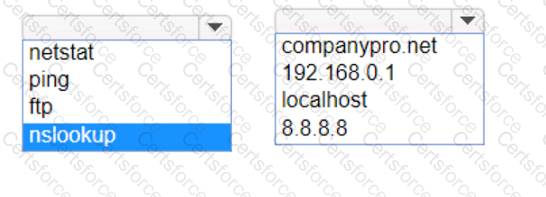

To determine if you can reach the router, you should use thepingcommand with the IP address of the router.

Command:ping

Target:192.168.0.1

So, the completed command is:

ping 192.168.0.1

Step by Step Comprehensive and Detailed Explanation:

ping: The ping command sends ICMP Echo Request messages to the target IP address and waits for an Echo Reply. It is commonly used to test the reachability of a network device.

192.168.0.1: This is the IP address of the default gateway (the router) as shown in theipconfigoutput. Pinging this address will help determine if the computer can communicate with the router.

References:

Using the ping Command: ping Command Guide

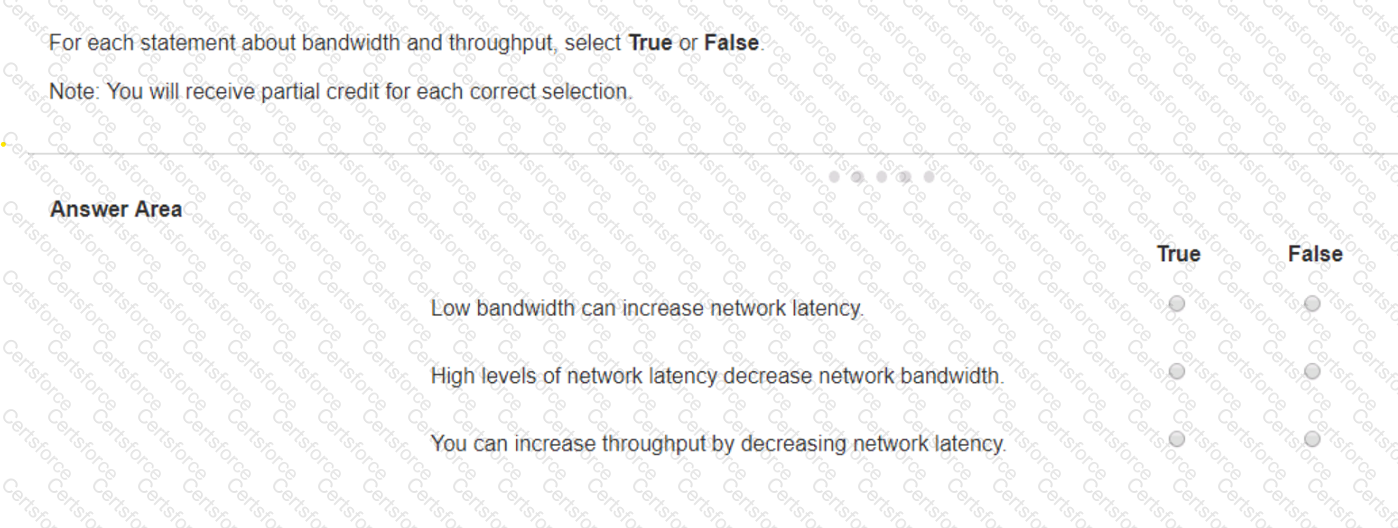

Statement 1: Low bandwidth can increase network latency.

True: Low bandwidth can result in increased network latency because the network may become congested, leading to delays in data transmission.

Statement 2: High levels of network latency decrease network bandwidth.

False: High levels of network latency do not decrease the available network bandwidth, but they do affect the perceived performance and throughput of the network.

Statement 3: You can increase throughput by decreasing network latency.

True: Decreasing network latency can increase throughput because data can be transmitted more quickly and efficiently without delays.

Bandwidth vs. Latency: Bandwidth refers to the maximum rate at which data can be transferred over a network path. Latency is the time it takes for a data packet to travel from the source to the destination.

Low bandwidth can cause network congestion, which can increase latency as packets wait to be transmitted.

High latency does not reduce the actual bandwidth but can affect the overall performance and efficiency of data transmission.

Reducing latency can lead to higher throughput because the network can handle more data in a given period without delays.

References:

Network Performance Metrics: Cisco Network Performance

Understanding Bandwidth and Latency: Bandwidth vs. Latency

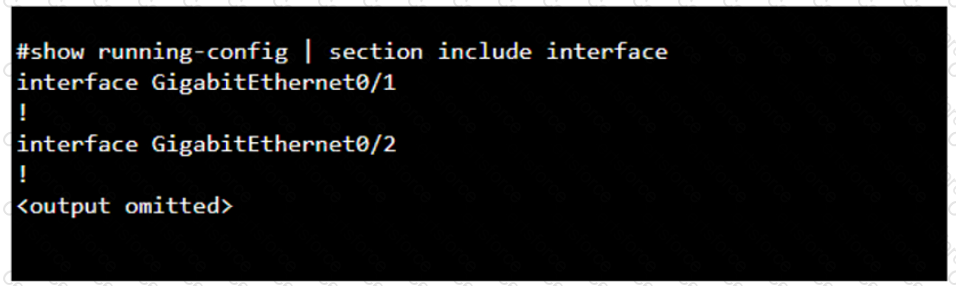

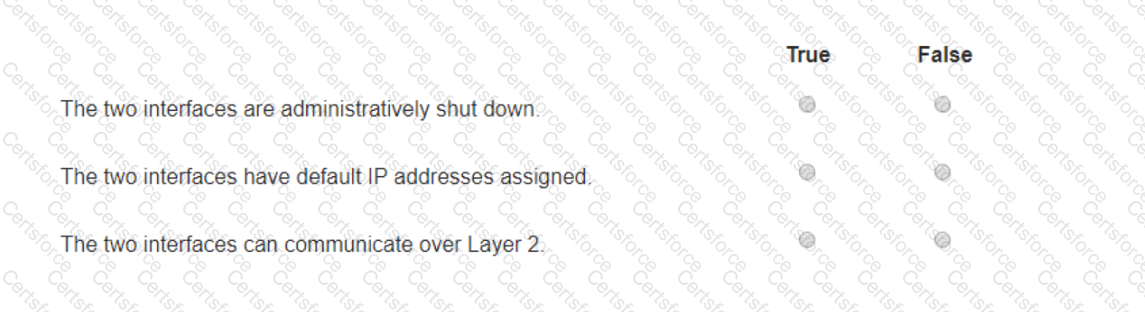

The two interfaces are administratively shut down:

False: The output does not show any "shutdown" command under the interfaces, which would indicate that they are administratively shut down. Therefore, they are likely in their default state, which is administratively up.

The two interfaces have default IP addresses assigned:

False: The output does not show any IP address configuration. In the default state, interfaces do not have IP addresses assigned unless explicitly configured.

The two interfaces can communicate over Layer 2:

True: By default, interfaces on a switch are Layer 2 interfaces capable of forwarding Ethernet frames. As there is no configuration provided that changes this, it can be assumed they can communicate over Layer 2.

Interface Status: The absence of the "shutdown" command means the interfaces are not administratively shut down.

IP Address Assignment: There is no evidence in the output that IP addresses have been assigned to the interfaces, which would typically be shown as "ip address" entries.

Layer 2 Communication: Switch interfaces in their default state operate at Layer 2, enabling them to forward Ethernet frames and participate in Layer 2 communication.

References:

Cisco IOS Interface Configuration: Cisco Interface Configuration

Understanding Cisco Switch Interfaces: Cisco Switch Interfaces

Two home office computers are connected to a switch by Ethernet cables.

Network Type: LAN (Local Area Network)

Explanation: A LAN connects devices within a limited area such as a home, office, or building, using Ethernet cables or Wi-Fi.

Three government buildings in the same city connect to a cable company over coaxial cables.

Network Type: MAN (Metropolitan Area Network)

Explanation: A MAN connects networks across a city or campus, often using fiber optic or coaxial cables.

A cell phone connects to a Bluetooth headset.

Network Type: PAN (Personal Area Network)

Explanation: A PAN connects devices within a personal workspace, typically using wireless technologies like Bluetooth.

A financial institution connects its branches through a telecommunications service provider.

Network Type: WAN (Wide Area Network)

Explanation: A WAN connects multiple LANs over long distances, often using leased lines or satellite links provided by telecommunications companies.

LAN (Local Area Network): Used for connecting devices within a small geographical area such as a single building or home.

MAN (Metropolitan Area Network): Covers a larger geographical area than a LAN, typically a city or campus.

PAN (Personal Area Network): Connects devices within the range of an individual person, such as connecting a phone to a Bluetooth headset.

WAN (Wide Area Network): Spans large geographical areas, connecting multiple LANs across cities, countries, or continents.

References:

Network Types Overview: Cisco Networking Basics

Understanding Different Network Types: Network Types Guide

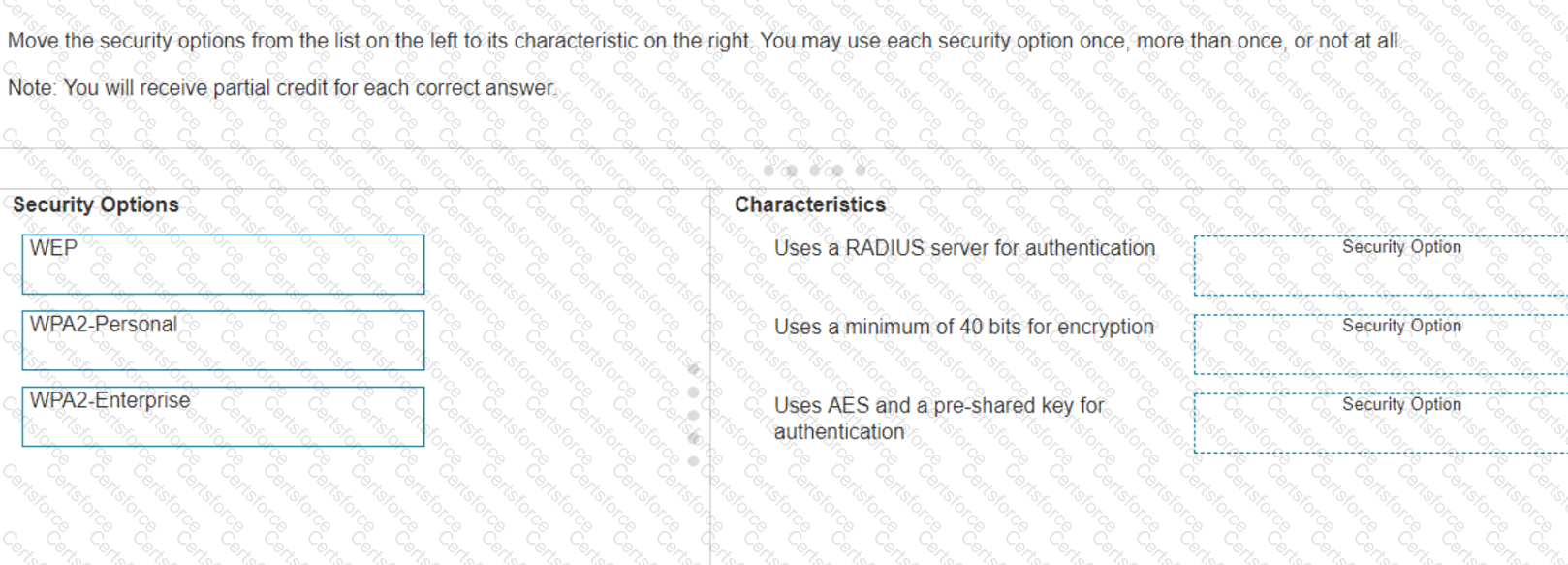

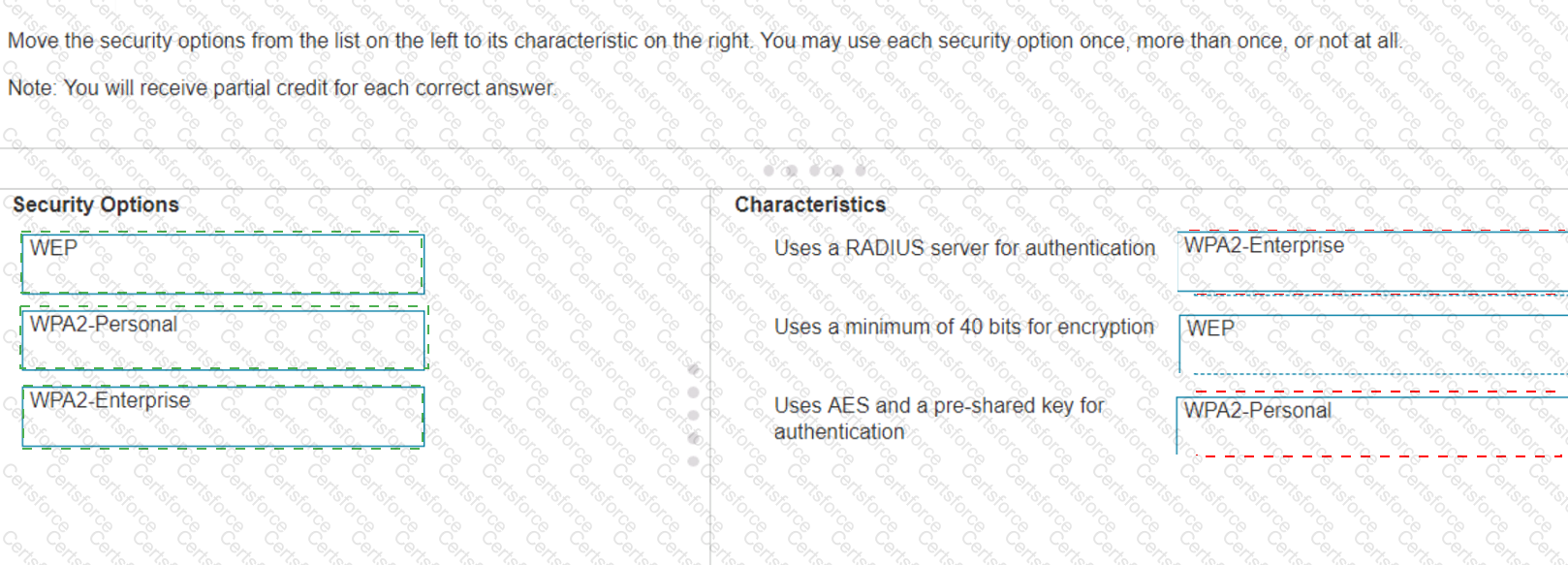

The correct matching of the security options to their characteristics is as follows:

WPA2-Enterprise: Uses a RADIUS server for authentication

WEP: Uses a minimum of 40 bits for encryption

WPA2-Personal: Uses AES and a pre-shared key for authentication

Here’s why each security option matches the characteristic:

WPA2-Enterpriseuses a RADIUS server for authentication, which provides centralized Authentication, Authorization, and Accounting (AAA) management for users who connect and use a network service.

WEP (Wired Equivalent Privacy)is an outdated security protocol that uses a minimum of 40 bits for encryption (and up to 104 bits), which is relatively weak by today’s standards.

WPA2-Personal(Wi-Fi Protected Access 2 - Personal) uses the Advanced Encryption Standard (AES) for encryption and a pre-shared key (PSK) for authentication, which is shared among users to access the network.

These security options are essential for protecting wireless networks from unauthorized access and ensuring data privacy.

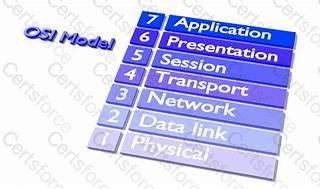

OSI model

During the data encapsulation process, theData Link layerof the OSI model is responsible for adding a header that contains MAC addressing information and a trailer used for error checking.The header typically includes the source and destination MAC addresses, while the trailer contains a Frame Check Sequence (FCS) which is used for error detection1.

The Data Link layer ensures that messages are delivered to the proper device on a LAN using hardware addresses and translates messages from the Network layer into bits for the Physical layer to transmit. It also controls how data is placed onto the medium and is received from the medium through the physical hardware.

References:=

The OSI Model – The 7 Layers of Networking Explained in Plain English

OSI Model - Network Direction

Which layer adds both header and trailer to the data?

What is OSI Model | 7 Layers Explained - GeeksforGeeks
