Questions # 1:

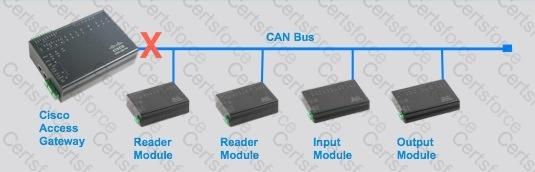

Refer to the exhibit.

Question # 1

In the event of a loss of connectivity from the Cisco Access Gateway to the expansion modules on the CAN bus, with DC power still connected, what will happen if an access card was presented to a card reader that is connected to one of the Reader Modules?

Options:
A.

Reader Module will first try to authenticate the user by attempting to contact the Cisco Access Gateway. Because connectivity is lost, Reader Module will not be able to authenticate, and no access will be granted.

B.

Reader Module will first try to authenticate the user by attempting to contact the Cisco Access Gateway. Because connectivity is lost, Reader Module will fall back to its locally cached credentials and grant access if the card is valid.

C.

Reader Module will first try to authenticate the user using its locally cached credentials. If the credentials are in the local database, access will be granted. If the credentials are not present, Reader Module will attempt to contact the Cisco Access Gateway, time out, and deny access to the user.

D.

Reader Module will sound an audible alarm.

Questions # 2:

Which devices does Cisco manufacture and sell?

Options:
A.

readers, locks, and door position switches

B.

locks, doors, and door hardware

C.

cards, card printers, and readers

D.

Cisco does not manufacture or sell readers, locks, door hardware, or card printers

Questions # 3:

How are nonstandard, third-party devices (temperature sensors, water sensors, and so on) added and managed in Cisco Physical Access Manager software?

Options:
A.

These devices cannot be added to Cisco PAM.

B.

A new device template can be created and the device added to the gateway or module.

C.

Devices will only appear as "Generic Input" or "Generic Output"—system messages that cannot be defined for specific third-party devices.

D.

A new device template can be created and added to the gateway. The device will only appear as "Generic Input" or "Generic Output."

Questions # 4:

What are the various ways to provide power to the access control reader, input, and output modules?

Options:
A.

PoE only

B.

12 VAC only

C.

12 to 24 VDC only

D.

PoE or 12 to 24 VDC

Questions # 5:

Which of the following databases are supported by the EDI module to import credentials (badge)?

Options:
A.

MySQL, Oracle, Microsoft Active Directory, and SQL

B.

MySQL, Oracle, SAP, and SQL

C.

MySQL, Oracle, and SQL

D.

MySQL, Informix, Oracle, SQL, and Microsoft Active Directory

Questions # 6:

In Cisco PAM, how do you configure items such as DNS, system upgrades, and rebooting of the server?

Options:
A.

via a web browser and logging into the Cisco PAM Server Administration web page

B.

by using the Cisco PAM Java Client

C.

Cisco PAM is configured using Cisco VSOM

D.

by using the Cisco PAM EDI Studio application

Questions # 7:

Which of the following best describes edge policies?

Options:
A.

Edge policies are similar to global I/O except that they are configured on the server, reside on the Cisco Access Gateway, and can work even if the Cisco Access Gateway loses network connectivity with the Cisco PAM server.

B.

Edge policies are similar to global I/O except that they get configured and executed on the gateway.

C.

Edge policies are used to execute URLs to third-party systems. The gateway requires connectivity with the server to work.

D.

Edge policies are similar to global I/O except that they get configured and executed on the gateway, and edge policies are used to execute URLs to third-party systems. The gateway requires connectivity with the server to work.

Questions # 8:

You trigger an event and expect to see video in a pop-up window on a Cisco PAM client graphical map, but the video did not pop up. This could have been caused by all of the following, except which one?

Options:
A.

You do not see the video pop-up window because you are in the graphical map editor.

B.

You do not see the video pop-up window because you are logged in with the default admin account.

C.

You do not see the video pop-up window because there are existing alarms that have not been acknowledged.

D.

You do not see the video pop-up window because the "Show live video" and/or "Show recorded video" options are disabled.

Questions # 9:

What are the three common methods that are used for authentication with an access control system?

Options:
A.

badge card, key fob, and keypad PIN

B.

badge card, keypad PIN, and password

C.

something you know, something you have, and something you are

D.

something you know, something you have, and something you did

Questions # 10:

When a 24 VDC fail safe lock is being used to secure a door, how should power be supplied to the lock from the control source?

Options:
A.

connected +24 VDC directly to the lock

B.

connected +24 VDC through common and normally close

C.

connected +24 VDC through common and normally open

D.

connected +5 VDC binary control signaling
