The administrator of ABC company is troubleshooting a one-way audio issue for a call that uses H.323 protocol (slow-start mode). The administrator requests that you provide the IP and port information of the Real- Time Transport Protocol traffic that had the one-way audio call.
You gather the H.225 and H.245 messages for one of the one-way audio calls. Where can you find the RTP IP and port information for both sides? (Note: This call flow has not invoked any media resources like MTP or transcoders).
Refer to the exhibit.

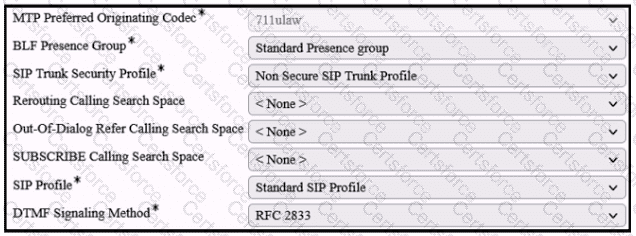

An administrator just Implemented SIP trunking on their Cisco UCM and reports that calls using the SIP trunk are using Media Termination Point resources unnecessarily. Which action resolves the issue?
Which top-level IOS command is needed to begin the configuration of a Cisco Unified Communications Manager Express gateway to enable phones to be registered via SIP?
Refer to the exhibit.
A collaboration engineer is troubleshooting an issue where the PSTN calls of a Cisco UCM IP phone user are not reaching the PSTN gateway. Which action resolves the issue?
Refer to the exhibit.

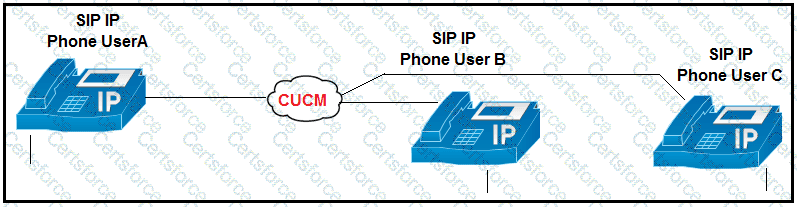

In an active SIP call between phone user A and phone user B, phone A initiates a call transfer to phone user C. Which two scenarios are correct? (Choose two.)
A user in location X dials an extension at location Y. The call travels through a QoS-enabled WAN network, but the user experiences choppy or clipped audio. What is the cause of this issue?
An engineer has temporarily disabled toll fraud prevention for SIP line calls on a Cisco CME12.6x and must enforce security and toll fraud prevention for the SIP line side on Cisco Unified CME. Which configuration must be used to start this process?
Calls to a particular extension are not routing to voicemail. The user reaches the voicemail system from the handset by pressing the Messages button Which configuration parameter causes this problem?
Phone A calls to phone B, but phone B has Call Forward All set to a PSTN number. The route list responsible for the phone B call to the PSTN has a standard local route group configured. Which route group must be used to send the call to the PSTN?
Refer to the exhibit.

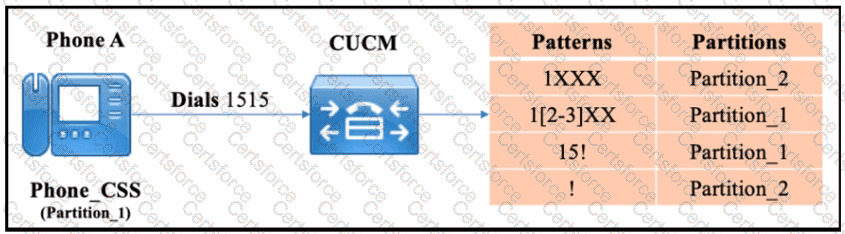

The Cisco UCM is configured with four route patterns. When phone A dials 1515, which pattern does Cisco UCM choose as the correct match?
