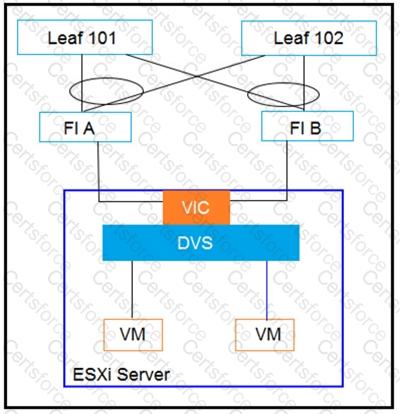

In the given scenario where CDP is disabled, LLDP is enabled, and LACP is in Active mode between Cisco UCS FIs and Cisco ACI leaf switches for the DVS setup, the compatible discovery protocol would be LLDP since it’s already enabled. As for load-balancing mechanisms with this setup: MAC Pinning can be used without relying on any link discovery protocol like CDP or LACP; hence option B is valid. Option F suggests usingLACP in Passivemode, whichcould complement the existing Active mode on other devicesto establishan LACP negotiation successfully. References: =Implementing Cisco Application Centric Infrastructure Official Cert Guide

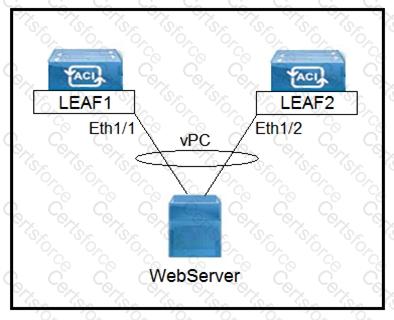

To implement the vPC (Virtual Port Channel) in the Cisco ACI fabric, one should select a common vPC interface policy group (Option A), select common interface profiles (Option C), and select common switch profiles (Option E). These steps ensure that both switches in a vPC domain are configured with consistent policies and profiles for interfaces and switches. This consistency is crucial for the proper functioning of a vPC setup where two or more links that are physically connected to two different Cisco ACI leaf switches appear as a single “logical” port channel to a third device, like the depicted WebServer.

 To limit both local and remote endpoint learning to instances where the source IP address belongs to a bridge-domain subnet in the VRF instance, the action that should be taken inside the Cisco APIC is to enable the “Enforce Subnet Check” feature. This configuration ensures that IP addresses outside the configured subnets for the bridge domain are not learned, preventing mis-learning of IP addresses that do not belong to the fabric12.

 In a stretched bridge domain solution between Cisco ACI sites with Layer 2 flood disabled, headend replication is used for broadcast, unknown unicast, and multicast (BUM) traffic between sites. This approach optimizes traffic flow and reduces unnecessary flooding across the network1.

References := Implementing Cisco Application Centric Infrastructure Official Cert Guide

For shared L3Out network connectivity among different tenants in a Cisco ACI fabric, a common tenant is necessary. It provides a global space for defining resources like L3Outs once, which can then be utilized by multiple tenants, simplifying management and ensuring consistent policy application. References := ( Implementing Cisco Application Centric Infrastructure Official Cert Guide )

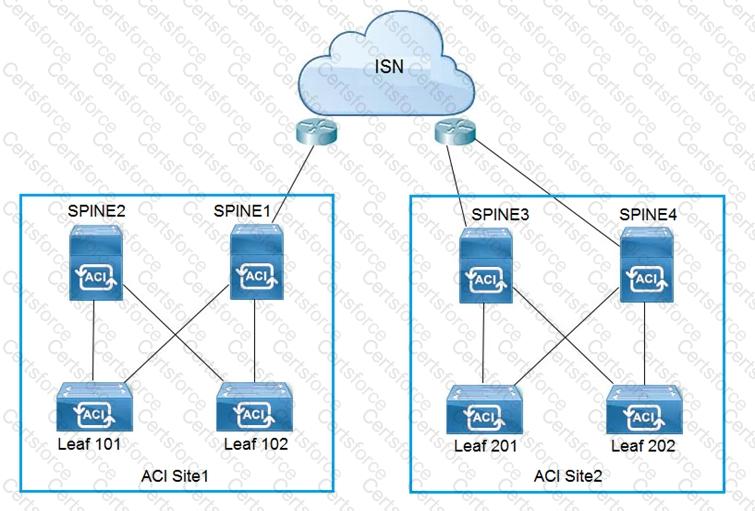

 In a Cisco ACI Multi-Site setup, the ISN (Inter-Site Network) connects different ACI sites. For efficient multicast traffic routing, BIDIR-PIM (Bidirectional Protocol Independent Multicast) is configured throughout the ISN, which is why option B is correct. Increasing the ISN MTU (Maximum Transmission Unit) to support the maximum MTU sent by endpoints is crucial to prevent packet fragmentation or loss, making option C correct.

Options A, D, and E are not typically required for an ACI Multi-Site setup. Direct connectivity between Spine switches and ISN routers, as mentioned in options A and D, is usually established through leaf switches. Option E, enabling IGMPv3 on ISN routers, is more relevant for managing multicast subscriptions within a single site.

References: = Implementing Cisco Application Centric Infrastructure Official Cert Guide

 In Cisco ACI fabric, STP BPDUs are flooded in the bridge domain VLAN. This allows the BPDUs to be propagated throughout the fabric, maintaining the STP topology2.

References := Implementing Cisco Application Centric Infrastructure Official Cert Guide

In a Cisco ACI Multi-Site fabric, when the Inter-Site BUM Traffic Allow option is enabled in a specific stretched bridge domain, ingress replication on the spines in the source site is used to forward Broadcast, Unknown unicast, and Multicast (BUM) traffic to all endpoints in the same broadcast domain. This method ensures that BUM traffic is efficiently replicated across the fabric, reaching all relevant endpoints without overwhelming the network with unnecessary traffic4.

References := Solved: Cisco ACI Multipod - BUM traffic - Cisco Community.

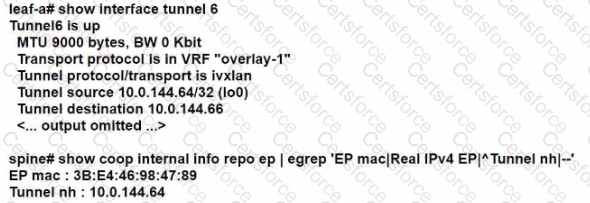

 The output shows details of tunnel 6 within a Cisco ACI fabric. The transport protocol is listed as “isvlan,” which is typically associated with the GRE protocol in Cisco ACIterminology. GRE, a tunneling protocol developed by Cisco, encapsulates various network layer protocols inside virtual point-to-point links over an IP internetwork. References: Implementing Cisco Application Centric Infrastructure Official Cert Guide

Table Description automatically generated
