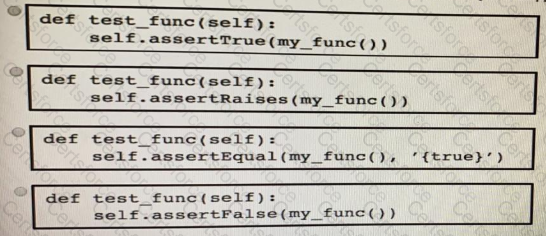

The function my_func() returns True when it executes normally. To test this function using Python's unittest framework, the correct assertion to use is assertTrue. This method tests if the given expression evaluates to True.

Option A (self.assertTrue(my_func())): This assertion checks if my_func() returns True.

Option B (self.assertRaises(my_func())): This is used to check if a specific exception is raised, which is not applicable here.

Option C (self.assertEqual(my_func(), 'true')): This checks if my_func() returns the string 'true', which is not correct as my_func() returns a boolean True.

Option D (self.assertFalse(my_func())): This checks if my_func() returns False, which is the opposite of what is needed.

1 – B, 2 – E, 3 – C, 4 – D, 5 – A

JSON objects are indeed collections of key-value pairs, where each key is a string, and the value can be a string, number, boolean, array, or another object. JSON is often used for data interchange due to its lightweight and readable format. Reference: JSON Introduction.

The syntax of XML includes tags, elements, and attributes. XML uses a hierarchical structure with opening and closing tags to define elements, and attributes provide additional information about elements. XML is widely used for data representation and transport. Reference: XML Basics.

JSON arrays, in contrast, are ordered collections of values (not key-value pairs), and XML objects are more complex structures with elements and attributes rather than simple key-value pairs.

Layer 2 switches use MAC (Media Access Control) addresses to direct packet transmission to the intended recipient.

MAC Address: A unique identifier assigned to network interfaces for communication on the physical network segment.

Switching: Layer 2 switches maintain a MAC address table to keep track of which MAC addresses are associated with which ports, enabling them to forward frames to the correct destination port.

When users cannot access a web server and the captured traffic shows an ICMP packet that reports "communication administratively prohibited," it indicates that there is a filtering device along the path, such as a router or firewall, that is intentionally blocking the traffic. This usually happens because of an access control list (ACL) that is set to deny the traffic to the webserver.

Access Control Lists (ACLs): ACLs are used in networking to control the flow of traffic into or out of a network. They can be configured on routers, firewalls, or other devices to allow or deny traffic based on IP addresses, protocols, ports, and other criteria.

ICMP Messages: ICMP (Internet Control Message Protocol) is used by network devices to send error messages and operational information. The "communication administratively prohibited" message specifically indicates that a device along the path has been configured to block the traffic.

Troubleshooting Steps:

Check ACL Configuration: Verify the ACL settings on all devices along the path to ensure that they are not blocking the required traffic.

Review Network Device Logs: Check logs on routers and firewalls for entries that match the blocked traffic.

Modify ACLs: If an ACL is found to be blocking the traffic, modify it to allow the required traffic to pass through.

References:

Cisco Documentation on ACLs: Access Control Lists

Cisco ICMP Overview: ICMP Messages
