Brocade 150-820 Exam Questions Free Practice Test

Viewing page 3 out of 6 pages

Viewing questions 21-30 out of questions

Questions # 21:

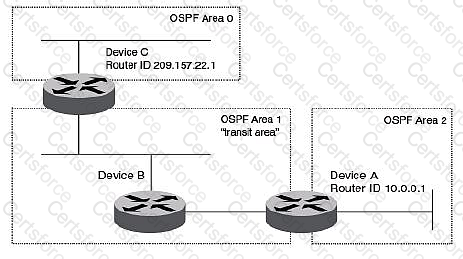

Referring to the exhibit, servers attached to Device A cannot access servers attached to Device C.

Question # 21

Which statement is correct?

Options:

OSPF Area 2 is not connected to the backbone area.

Device A is too many hops away from Device C.

Servers on Device A are on the wrong subnet and cannot reach Device C.

A network loop is preventing servers on Device A from reaching Device C.

Questions # 22:

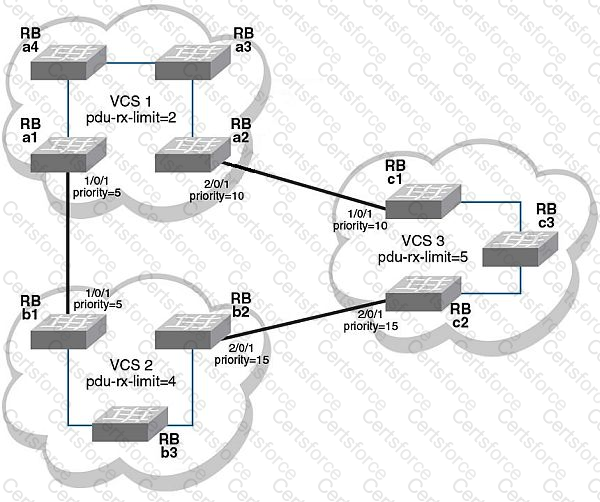

You have three Brocade VCS Fabrics linked together and have enabled ELD.

Question # 22

Referring to the exhibit, which link would be blocked?

Options:

the link between a1 and b1

the link between b2 and c2

the link between a2 and c1

the link between a3 and a4

Questions # 23:

You want to enable a Service Virtual Fabric to provide 802.1Q VLAN virtualization.

Which two statements are correct? (Choose two.)

Options:

The 802.1Q classification rule should be configured at each physical interface.

The 802.1Q classification rule at each interface is a global configuration.

A Virtual Fabric VLAN ID is unique within a Brocade VCS Fabric.

Only one Virtual Fabric VLAN ID is allowed to be configured on each physical interface.

Questions # 24:

You have a Brocade VDX 6730 not running in logical chassis cluster mode. An ISL is segmented and the interface is up/up.

Which three parameters should you verify? (Choose three.)

Options:

stand-alone mode enabled

VCS ID

RBridge ID

World Wide Name

VCS Fabric mode enabled

Questions # 25:

You are attempting to configure an ISL port to carry tagged VLANs. The ISL is currently active and you can see your neighbor switch in the show fabric isl command output. You enter the switchport command on the ISL interface but receive an error.

What is the cause of the error?

Options:

You must shut down the port before adding the VLANs.

You cannot configure a switch port on an ISL.

The switchport command is applied under the port profile.

40 GbE ports cannot be put into switchport mode.

Questions # 26:

You just connected multiple Brocade VCS Fabric mode-enabled switches and you want them to form an Ethernet fabric.

Which two configurations must be applied? (Choose two.)

Options:

RBridge IDs must be configured to match all other switches in the fabric.

VCS IDs must be configured the same as all other switches in the fabric.

RBridge IDs must be unique to all other switches in the fabric.

VCS IDs must be unique to all other switches in the fabric.

Questions # 27:

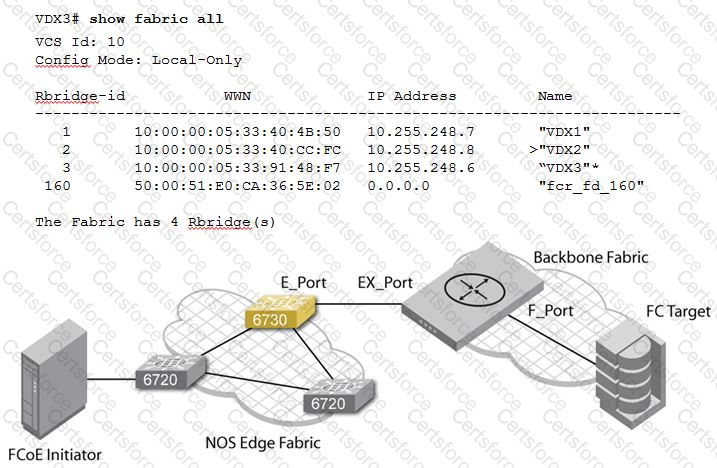

The FCoE initiator is unable to communicate with the FC target as shown in the exhibit.

Question # 27

What are two reasons? (Choose two.)

Options:

The IFL between the Brocade VCS Fabric and FC SAN is offline.

The Brocade VDX 6720 that the FCoE initiator is connected to is segmented.

LSAN zoning is not configured correctly.

The FC target is not logged into the SAN.

Questions # 28:

You have a Brocade VDX switch in production and you must save a backup copy of the running configuration to a remote location.

What are two ways to accomplish this task? (Choose two.)

Options:

Use TFTP.

Use SCP.

Use FTP.

Use SSL.

Questions # 29:

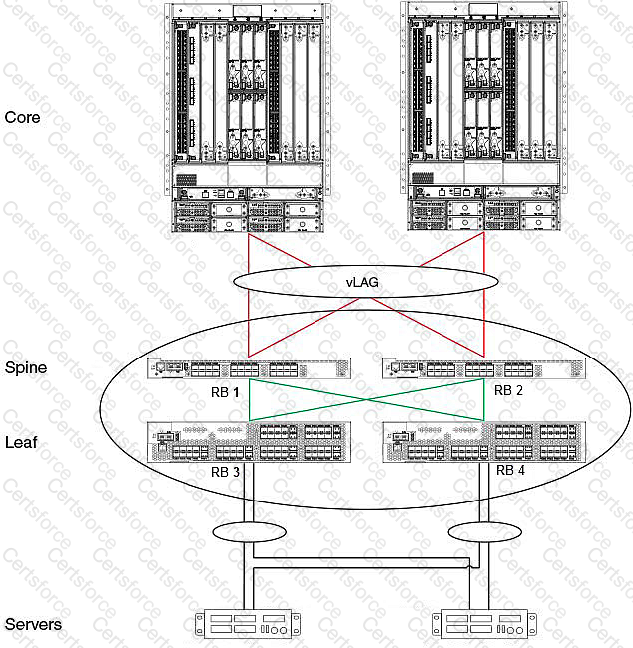

Referring to the exhibit,

Question # 29

to minimize downtime, what is the Brocade recommended approach to fabric node upgrades?

Options:

Upgrade the spine RBridges then the leaf RBridges.

Upgrade the odd RBridges then the even RBridges.

Upgrade the core RBridges then the edge RBridges.

Upgrade the leaf RBridges then the spine RBridges.

Questions # 30:

You are asked to connect a Brocade VDX 8770 to a Brocade VDX 6740 in logical chassis mode using four 40 Gbps links.

Which license is required?

Options:

an Advanced Services license on the VDX 8770

a 40 GbE Port license on the VDX 8770

an Advanced Services license on the VDX 6740

a 40 GbE Port license on the VDX 6740

Viewing page 3 out of 6 pages

Viewing questions 21-30 out of questions
