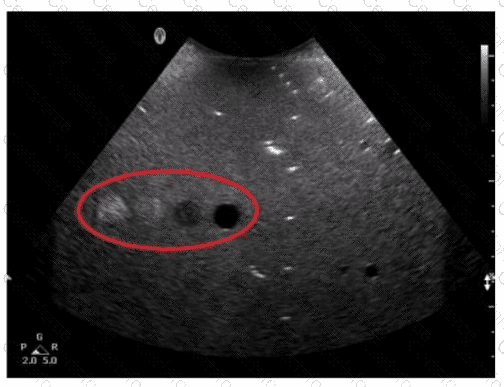

The tissue-equivalent phantom image with the red oval indicates an area where axial resolution can be evaluated. Axial resolution refers to the ability to distinguish between two structures that are close together along the axis of the ultrasound beam. It is determined by the spatial pulse length (SPL) of the ultrasound wave. In phantoms, this is typically tested by observing the ability to separate closely spaced targets along the beam's path.

Temporal resolution refers to the ability of an ultrasound system to distinguish between events occurring closely in time. It is primarily affected by the frame rate, which is the number of frames displayed per second. One of the main factors that influence the frame rate is the display depth. The deeper the imaging depth, the longer it takes for the ultrasound pulses to travel to the target and back, thus reducing the frame rate and temporal resolution. Shallower imaging depths allow for higher frame rates and better temporal resolution.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

Comprehensive and Detailed Explanation From Exact Extract:

Continuous wave (CW) Doppler can measure very high velocities without aliasing because it does not have a Nyquist limit like pulsed-wave Doppler.

Principles and Instrumentation state:

"Aliasing is eliminated in continuous wave Doppler since it does not rely on sampling and has no upper velocity limit."

Output power (A) affects signal strength, not aliasing.

Higher frequency (B) increases aliasing susceptibility.

Decreasing PRF (C) actually worsens aliasing.

Therefore, the correct answer is D: Using continuous wave Doppler ultrasound.

—

During 3-D volume acquisition in ultrasound, the quality of the images is most dependent on the number of slices acquired. This is because the more slices (or planes) that are captured, the more detailed and accurate the reconstruction of the 3-D volume will be. This allows for better spatial resolution and more precise visualization of anatomical structures. Other factors, such as power output, rendering methods, and speed of post-processing, also affect image quality but are secondary to the number of slices in terms of fundamental image acquisition quality.

Comprehensive and Detailed Explanation From Exact Extract:

Ideal imaging transducers have broad bandwidths (allowing multiple frequencies for better axial resolution and flexibility) and a low quality factor (which indicates efficient damping, leading to short pulses and better image quality).

According to sonography instrumentation reference:

“Imaging transducers operate with broad bandwidth and low quality factor to achieve short pulse duration and optimal axial resolution.”

Therefore, the correct answer is B: Broad bandwidth; low quality factor.

—

Comprehensive and Detailed Explanation From Exact Extract:

Interpolation estimates pixel values between scan lines by averaging adjacent data, filling in gaps to create a smoother, more complete image without additional scanning.

According to sonography instrumentation reference:

“Interpolation is a post-processing technique that fills gaps between scan lines by estimating values based on surrounding echoes, improving image smoothness.”

Therefore, the correct answer is D: Interpolation.

—
