Transducer beam divergence is influenced by the aperture size and frequency. A smaller aperture and lower frequency result in greater beam divergence. Among the given options, the transducer with a 4 mm aperture and 4 MHz frequency will have the greatest divergence. This is because the smaller aperture size contributes to a wider beam spread, and the lower frequency also increases the divergence compared to higher frequencies.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments. Elsevier.

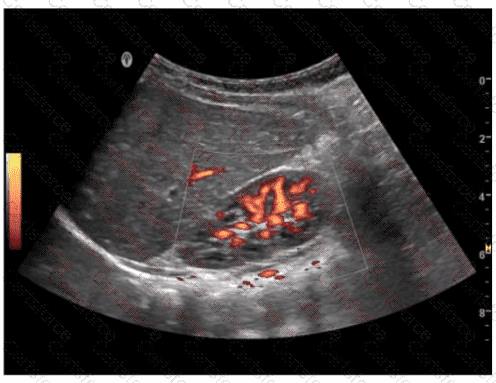

Color aliasing in Doppler ultrasound occurs when the velocity of blood flow exceeds the Nyquist limit, causing the color display to wrap around and display high velocities incorrectly as the opposite direction. This phenomenon is characterized by a mix of colors that indicate flow in both directions at the same location. In the provided image, there is a clear presence of color aliasing, as evidenced by the abrupt color change across the vessel, which is not consistent with normal flow patterns.

Comprehensive and Detailed Explanation From Exact Extract:

In color Doppler, frequency shifts can be displayed either above or below the baseline in spectral Doppler. In spectral Doppler, a positive shift is displayed above the baseline by default (unless inverted). In color Doppler, red/blue assignments depend on color map orientation.

Principles and Instrumentation state:

"A positive Doppler shift (flow toward the transducer) is displayed above the baseline in spectral Doppler."

Red color (B) does not always correspond to positive shift; it depends on color map.

Negative shift (C) does not always indicate venous flow.

Wall filter settings (D) affect low-velocity signals, not shift direction.

Therefore, the correct answer is A: A positive shift is always above the baseline.

—

Comprehensive and Detailed Explanation From Exact Extract:

When evaluating high blood velocities, especially at angles closer to zero degrees (which produces maximum Doppler shifts), aliasing can easily occur because the Doppler frequency shift increases. To avoid aliasing, you must increase the Doppler scale (which increases the pulse repetition frequency, PRF) to accommodate these higher velocities.

According to sonography instrumentation references:

“The Doppler scale (PRF) must be increased when high velocities are anticipated to prevent aliasing, especially at optimal Doppler angles near zero degrees where maximum frequency shifts occur.”

Therefore, the correct answer is C: Increased Doppler scale settings.

—

Lateral resolution refers to the ability to distinguish two structures that are side by side. It is dependent on the width of the ultrasound beam. By decreasing the depth of field, the beam width is reduced at any given point along the depth, which improves the lateral resolution. This is because a narrower beam can better distinguish between objects that are close together laterally.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments.

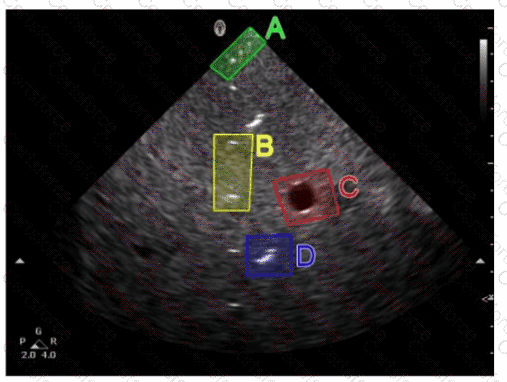

In the given image of a tissue-mimicking phantom, Option B (yellow box) is used to evaluate axial resolution. Axial resolution refers to the ability of the ultrasound system to distinguish between two structures that are close to each other along the path of the ultrasound beam (i.e., parallel to the beam). The targets in Option B are typically aligned in such a way to test the system's capacity to differentiate between structures that are situated closely together along the beam’s axis.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Sonography: Principles and Instruments" by Joan P. Baker and Marveen Craig

The maximum Doppler shift that can be detected without aliasing is determined by the Nyquist limit, which is half of the pulse repetition frequency (PRF). If the PRF is 3 kHz, the Nyquist limit is3????????????2=1.5????????????23kHz​=1.5kHz. Therefore, the maximum Doppler shift that can be detected without aliasing is 1.5 kHz. Aliasing occurs when the Doppler shift exceeds this limit, causing an incorrect representation of the velocity.

Comprehensive and Detailed Explanation From Exact Extract:

The end-diastolic velocity represents the lower velocity portion of the Doppler waveform. The wall filter (or high-pass filter) removes low-frequency Doppler shifts from the spectral display. When the wall filter is increased, it filters out these low-velocity signals — including diastolic flow components. According to sonography Principles and Instrumentation reference materials:

"The wall filter eliminates low-velocity signals from the Doppler spectrum. Increasing the wall filter may completely eliminate end-diastolic velocities, especially in low-resistance arterial flow."

Therefore, the correct answer is D: Increased wall filter.

—

Comprehensive and Detailed Explanation From Exact Extract:

The matching layer is placed in front of the piezoelectric element and serves to reduce the difference in acoustic impedance between the transducer and human tissue, thereby improving sound transmission and minimizing reflection at the interface.

According to sonography instrumentation reference:

“The matching layer minimizes impedance mismatch between the transducer and soft tissue, allowing more efficient transmission of ultrasound energy into the patient.”

Therefore, the correct answer is D: Matching Layer.

—

Comprehensive and Detailed Explanation From Exact Extract:

Elevational resolution (slice thickness resolution) refers to the ability to resolve structures perpendicular to the imaging plane and is directly determined by the beam’s thickness in that plane.

Principles and Instrumentation state:

"Elevational resolution is governed by the slice thickness, which depends on the transducer's beam profile and focusing in the elevational dimension."

Beam depth (A) affects penetration.

Beam uniformity ratio (C) is not related.

Beam width (D) affects lateral resolution.

Therefore, the correct answer is B: Beam thickness.

—
