The requirement specifies that management tooling must be resilient at the component level within a single site, meaning each site’s management components (e.g., VMware Aria Suite) must withstand individual failures without relying on the other site. Let’s evaluate each option in the context of VCF 5.2 and Aria Suite:

Option A: The solution will implement an external load balancer for Aria Operations Cloud ProxiesAria Operations Cloud Proxies collect data for monitoring and don’t inherently require an external load balancer for resiliency within a site. TheVMware Aria Operations Administration Guideindicates that proxies are lightweight and typically deployed per cluster, with resiliency achieved via multiple proxies, not load balancing. This doesn’t directly address component-level resiliency for the broader Aria Suite management tools.

Option B: The solution will configure the VCF Workload domain in a stretched topology across two locationsA stretched topology extends a workload domain across two sites for site-level resiliency (e.g., disaster recovery), not component-level resiliency within a single site. TheVCF 5.2 Architectural Guidenotes that stretched clusters rely on cross-site failover, which contradicts the requirement for single-site resilience, making this irrelevant to management tooling within one site.

Option C: The solution will deploy three Aria Automation appliances in a clustered configurationVMware Aria Automation (formerly vRealize Automation) supports a clustered deployment with three appliances (primary, replica, and failover) to ensure high availability within a site. TheVMware Aria Automation Installation Guideconfirms that this configuration provides component-level resiliency by allowing the cluster to tolerate individual appliance failures without service disruption. In VCF, Aria Automation is a key management tool, and this design meets the requirement for single-site resilience.

Option D: The solution will deploy Aria Suite Lifecycle Manager in a high availability configurationAria Suite Lifecycle Manager (LCM) manages the lifecycle of Aria components but isn’t deployed in a clustered HA configuration itself in VCF 5.2—it’s a single appliance with backup/restore options. TheVCF 5.2 Administration Guidenotes that LCM resiliency is typically achieved via infrastructure HA (e.g., vSphere HA), not native clustering, making this less directly aligned with component-level resiliency compared to Aria Automation clustering.

Conclusion:Option C best meets the requirement by ensuring Aria Automation, a critical management tool, is resilient at the component level within a single site through clustering, aligning with VCF and Aria Suite best practices.References:

VMware Cloud Foundation 5.2 Architectural Guide(docs.vmware.com): Management Component Design.

VMware Aria Automation Installation Guide(docs.vmware.com): Clustered Configuration for HA.

VMware Aria Suite Lifecycle Administration Guide(docs.vmware.com): LCM Deployment Options.

The requirement for N+1 resiliency means the solution must tolerate the failure of one component (in this case, one ESXi host) without disrupting workloads. In VMware Cloud Foundation (VCF), this is typically achieved through vSphere High Availability (HA) settings and sufficient host capacity. The scenario provides key constraints: a 4-node cluster can handle all workloads at 90% utilization, and no growth is expected. Let’s evaluate each option:

Option A: Set the DRS Automation level to Partially AutomatedDRS (Dynamic Resource Scheduling) balances workloads across hosts, but the automation level (Partially Automated vs. Fully Automated) doesn’t directly impact N+1 resiliency. Partially Automated requires manual approval for migrations, which doesn’t enhance or detract from HA-based resiliency. While DRS is useful, this specific setting isn’t critical to the N+1 requirement, per theVMware Cloud Foundation 5.2 Architectural Guide.

Option B: Deploy a workload cluster consisting of five VMware vSphere hostsA 5-node cluster provides N+1 resiliency when paired with HA configured to tolerate one host failure. If one host fails, the remaining four can handle the workload, assuming capacity planning accounts for this. The Aria Operations report indicates a 4-node cluster is sufficient at 90% utilization, but adding a fifth host ensures capacity remains after a failure (reducing utilization to ~72% across four hosts: 90% / 1.25). This aligns with VCF’s standard architecture recommendations for resiliency (VMware Cloud Foundation 5.2 Architectural Guide).

Option C: Set the Host failures cluster tolerates for the workload cluster to 1This HA setting ensures the cluster reserves capacity (e.g., CPU and memory) to failover VMs from onefailed host. In VCF, setting “Host failures cluster tolerates” to 1 is a direct implementation of N+1 resiliency, making it a required design decision (vSphere Availability GuideandVCF 5.2 Administration Guide).

Option D: Deploy a workload cluster consisting of four VMware vSphere hostsA 4-node cluster meets capacity needs at 90% utilization but lacks N+1 resiliency without additional capacity. If one host fails, the remaining three would be overcommitted (120% utilization: 90% / 0.75), risking performance or availability. Thus, this doesn’t satisfy the requirement alone.

Option E: Configure vSphere High Availability (HA) for the workload clusterHA is foundational to N+1 resiliency in vSphere and VCF, enabling VM restarts on surviving hosts after a failure. Without HA, N+1 cannot be achieved, making this a mandatory choice (VMware Cloud Foundation 5.2 Administration Guide).

Option F: Configure vSphere Dynamic Resource Scheduling (DRS) for the workload clusterDRS enhances performance by balancing workloads but isn’t strictly required for N+1 resiliency, which focuses on availability, not optimization. It’s a best practice in VCF but not one of the three critical decisions for this requirement.

Conclusion:

B: A 5-node cluster provides the extra host for N+1.

C: HA set to tolerate 1 host failure implements N+1 policy.

E: HA configuration enables failover, a core N+1 component.Options B, C, and E together ensure the cluster can lose one host without service disruption, meeting the customer’s requirement.References:

VMware Cloud Foundation 5.2 Architectural Guide(docs.vmware.com): Section on Workload Domain Design and HA/DRS Configuration.

vSphere Availability Guide(docs.vmware.com): Chapter on Configuring High Availability.

VMware Cloud Foundation 5.2 Administration Guide(docs.vmware.com): HA and Cluster Sizing Guidelines.

The scenario involves designing a VMware Cloud Foundation (VCF) stretched cluster with L2 non-uniform connectivity, leveraging NSX (a core component of VCF) for networking. The customer’s past incident, where an attacker injected false routes into their dynamic global routing table, indicates a security vulnerability in the routing protocol. The Tier-0 gateway in NSX handles external connectivity and routing, typically using dynamic routing protocols like BGP (Border Gateway Protocol) or OSPF (Open Shortest Path First) to exchange routes with external routers. The design decision must prevent unauthorized route injection, ensuring the integrity of the routing table.

Context Analysis:

Stretched Cluster with L2 Non-Uniform Connectivity:In VCF 5.2, a stretched cluster spans multiple availability zones (AZs) with L2 connectivity for workload VMs, but the Tier-0 gateway uplinks may use L3 routing to external networks. “Non-uniform” suggests varying latency or bandwidth between sites, but this does not directly impact the routing security concern.

False Routes Injection:This implies the attacker exploited a lack of authentication or filtering in the routing protocol, allowing unauthorized route advertisements to be accepted into the Tier-0 gateway’s routing table.

Tier-0 Gateway:In NSX, the Tier-0 gateway is the edge component that peers with external routers (e.g., top-of-rack switches or upstream routers) and supports dynamic routing protocols like BGP and OSPF.

Routing Security in NSX:

NSX Tier-0 gateways commonly use BGP for external connectivity due to its scalability and flexibility in multi-site deployments like stretched clusters. OSPF is also supported but is less common for external peering in VCF designs.

Route injection attacks occur when an unauthorized device advertises routes without validation, often due to missing authentication mechanisms.

Option Analysis:

A. OSPF MD5 authentication:OSPF supports MD5 authentication to secure routing updates between neighbors. Each OSPF message is hashed with a shared secret key, ensuring only trusted peers can exchange routes. This would prevent false route injection if OSPF were the protocol in use. However, in VCF stretched cluster designs, BGP is the default and recommended protocol for Tier-0 gateway uplinks to external networks, as per the VMware Cloud Foundation Design Guide. OSPF is typically used for internal NSX routing (e.g., between Tier-0 and Tier-1 gateways) rather than external peering. Without evidence that OSPF is used here, and given BGP’s prevalence in such scenarios, this option is less applicable.

B. Gateway Firewall with ECMP:The Gateway Firewall on the Tier-0 gateway filters traffic, not routes. Equal-Cost Multi-Path (ECMP) enhances bandwidth by load-balancing across multiple uplinks but does not inherently secure the routing table. While a firewall could block traffic from malicious sources, it cannot prevent the Tier-0 gateway from accepting false route advertisements in the control plane (routing protocol). Route injection occurs at the routing protocol level, not the data plane, so this option does not address theroot issue. The NSX Administration Guide confirms that firewall rules apply to packet forwarding, not route validation, making this incorrect.

C. Implicit deny for any traffic:An implicit deny rule in the Gateway Firewall blocks all traffic not explicitly allowed, enhancing security for data plane traffic. However, this does not protect the control plane—specifically, the dynamic routing protocol—from accepting false routes. Route injection happens before traffic filtering, as the routing table determines where packets are sent. The VMware Cloud Foundation 5.2 documentation emphasizes that routing security requires protocol-specific measures, not just firewall rules. This option fails to prevent the described attack and is incorrect.

D. BGP peer password:BGP supports authentication via a peer password (MD5-based in NSX), where each BGP session between the Tier-0 gateway and its external peers (e.g., physical routers) uses a shared secret. This ensures that only authenticated peers can advertise routes, preventing unauthorized devices from injecting false routes into the dynamic routing table. In VCF 5.2 stretched cluster deployments, BGP is the standard protocol for Tier-0 uplinks, as it supports multi-site connectivity and ECMP for redundancy. The NSX-T Data Center Design Guide and VCF documentation recommend BGP authentication to secure routing in such environments, directly addressing the customer’s past incident. This is the most relevant and effective design decision.

Conclusion:The architect should chooseBGP peer password (D)as the design decision for the Tier-0 gateway. This secures the BGP routing protocol—widely used in VCF stretched clusters—against false route injection by requiring authentication, aligning with the scenario’s security requirements and NSX best practices.

References:

VMware Cloud Foundation 5.2 Design Guide (Section: NSX Design for Stretched Clusters)

VMware NSX-T Data Center 3.2 Administration Guide (Section: Tier-0 Gateway Routing)

VMware Cloud Foundation 5.2 Planning and Preparation Workbook (Section: Networking Security)

VMware Validated Design for Stretched Clusters (Section: Routing Security)

VMware Aria Operations Continuous Availability (CA) is a feature in VMware Aria Operations (integrated with VMware Cloud Foundation 5.2) that provides high availability by splitting analytics nodes across two fault domains (datacenters) with a Witness Node in a third location to arbitrate in case of a split-brain scenario. The Witness Node has specific network requirements for latency and bandwidth to ensure reliable communication with the primary and replica nodes. These requirements are outlined in the VMware Aria Operations documentation, which aligns with VCF 5.2 integration.

VMware Aria Operations CA Witness Node Network Requirements:

Network Latency:

The Witness Node requires a round-trip latency ofless than 100msbetween itself and both fault domains under normal conditions.

Peak latency spikes are acceptable if they are temporary and do not exceed operational thresholds, but sustained latency above 100ms can disrupt Witness functionality.

Network Bandwidth:

The minimum bandwidth requirement for the Witness Node is10Mbits/sec(10 Mbps) to support heartbeat traffic, state synchronization, and arbitration duties. Lower bandwidth risks communication delays or failures.

Network Stability:

Temporary latency spikes (e.g., during 20-second intervals) are tolerable as long as the baseline latency remains within limits and bandwidth supports consistent communication.

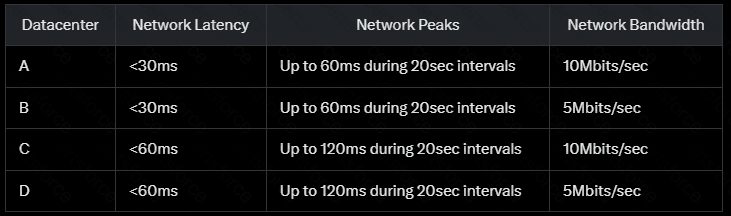

Evaluation of Each Datacenter:

Datacenter A: <30ms latency, peaks up to 60ms during 20sec intervals, 10Mbits/sec bandwidth

Latency: Baseline latency is <30ms, well below the 100ms threshold. Peak latency of 60ms during 20-second intervals is still under 100ms and temporary, posing no issue.

Bandwidth: 10Mbits/sec meets the minimum requirement.

Conclusion: Datacenter A fully satisfies the Witness Node requirements.

Datacenter B: <30ms latency, peaks up to 60ms during 20sec intervals, 5Mbits/sec bandwidth

Latency: Baseline <30ms and peaks up to 60ms are acceptable, similar to Datacenter A.

Bandwidth: 5Mbits/sec falls below the required 10Mbits/sec, risking insufficient capacity for Witness Node traffic.

Conclusion: Datacenter B does not meet the bandwidth requirement.

Datacenter C: <60ms latency, peaks up to 120ms during 20sec intervals, 10Mbits/sec bandwidth

Latency: Baseline <60ms is within the 100ms limit, but peaks of 120ms exceed the threshold. While temporary (20-second intervals), such spikes could disrupt Witness Node arbitration if they occur during critical operations.

Bandwidth: 10Mbits/sec meets the requirement.

Conclusion: Datacenter C fails due to excessive latency peaks.

Datacenter D: <60ms latency, peaks up to 120ms during 20sec intervals, 5Mbits/sec bandwidth

Latency: Baseline <60ms is acceptable, but peaks of 120ms exceed 100ms, similar to Datacenter C, posing a risk.

Bandwidth: 5Mbits/sec is below the required 10Mbits/sec.

Conclusion: Datacenter D fails on both latency peaks and bandwidth.

Conclusion:

OnlyDatacenter Ameets the minimum network requirements for the Witness Node in Aria Operations Continuous Availability. Its baseline latency (<30ms) and peak latency (60ms) are within the 100ms threshold, and its bandwidth (10Mbits/sec) satisfies the minimum requirement. Datacenter B lackssufficient bandwidth, while Datacenters C and D exceed acceptable latency during peaks (and D also lacks bandwidth). In a VCF 5.2 design, the architect would recommend Datacenter A for the Witness Node to ensure reliable CA operation.

References:

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: Aria Operations Integration)

VMware Aria Operations 8.10 Documentation (integrated in VCF 5.2): Continuous Availability Planning

VMware Aria Operations 8.10 Installation and Configuration Guide (Section: Network Requirements for Witness Node)

In the context of VMware Cloud Foundation (VCF) and disaster recovery planning, two key metrics are defined:Recovery Point Objective (RPO)andRecovery Time Objective (RTO). These terms are standardized in VMware documentation and IT disaster recovery frameworks. Let’s clarify their meanings and evaluate the options:

RPO (Recovery Point Objective):RPO measures the maximum amount of data loss that can be tolerated, expressed as the time windowbetween the last backup and the point of failure. In this case, an RPO of 1 business hour means the customer can lose up to 1 hour of data for business-critical workloads.

RTO (Recovery Time Objective):RTO measures the maximum tolerable downtime—or the time allowed—between a failure and the restoration of an application or service to a usable state. Here, an RTO of 4 business hours means the infrastructure components must be recovered within 4 hours after a failure.

Option A: It determines the minimum amount of data loss that can be toleratedThis is incorrect. Data loss is tied to RPO, not RTO. Additionally, “minimum” data loss doesn’t align with the concept of a maximum tolerance threshold defined by RPO.

Option B: It determines the maximum tolerable amount of time allowed before an application/service should be recovered to a usable stateThis is correct. TheVMware Cloud Foundation 5.2 Architectural Guidedefines RTO as the maximum time a system, application, or process can be down before causing significant harm, matching the scenario’s 4-hour RTO for infrastructure recovery. This is the standard definition in VMware’s disaster recovery context.

Option C: It determines the minimum tolerable amount of time allowed before an application/service should be recovered to a usable stateThis is incorrect. RTO is about the maximum acceptable downtime, not a minimum. A “minimum tolerable time” would imply a floor, not a ceiling, which contradicts RTO’s purpose.

Option D: It determines the maximum amount of data loss that can be toleratedThis is incorrect. Maximum data loss is defined by RPO (1 hour in this case), not RTO. RTO focuses on time to recovery, not data loss.

Conclusion:RTO measures the maximum tolerable downtime, makingBthe correct answer. This aligns with VMware’s recovery planning definitions.References:

VMware Cloud Foundation 5.2 Architectural Guide(docs.vmware.com): Section on Disaster Recovery Planning (RPO and RTO Definitions).

VMware vSphere Availability Guide(docs.vmware.com): RTO and RPO in HA and DR Contexts.

When sizing a VMware Cloud Foundation (VCF) VI Workload Domain, calculating usable compute capacity involves determining the resources available for workloads after accounting for overheads and system-level requirements. In VCF 5.2, a VI Workload Domain integrates vSphere, vSAN, and NSX, and certain factors directly impact the compute capacity available to virtual machines. Based on the official VMware Cloud Foundation 5.2 documentation, the three key factors to consider are vSphere HA, vSAN, and NIOC.
