Pass the HP ACNSP HPE7-A02 Questions and answers with CertsForce

To minimize disruption time if an AOS-CX switch reboots while implementing DHCP snooping and ARP inspection, you should save the IP-to-MAC bindings to external storage. This ensures that the DHCP snooping and ARP inspection tables, which are crucial for preventing spoofing attacks, are preserved across reboots. When the switch restarts, it can reload these bindings from the external storage, thereby maintaining network security and reducing the downtime associated with rebuilding these tables.

1.Preserving Bindings: Saving IP-to-MAC bindings to external storage ensures that these critical security tables are not lost during a reboot, maintaining network integrity.

2.Security Continuity: This practice helps to quickly restore security features like DHCP snooping and ARP inspection, minimizing the window of vulnerability.

3.Operational Efficiency: By preserving these bindings, the switch can resume normal operations faster, reducing disruption to network services.

After installing an HPE Aruba Networking Network Analytic Engine (NAE) script on an AOS-CX switch, the additional step required to start the monitoring is to create an agent from the script. The agent is responsible for executing the script and collecting the monitoring data as defined by the script parameters.

1.Script Installation: Installing the script provides the logic and parameters for monitoring.

2.Agent Creation: Creating an agent from the script activates the monitoring process, allowing the NAE to begin tracking the specified function.

3.Operational Step: This step ensures that the monitoring logic is applied and the data collection starts as per the script’s configuration.

RADIUS Accounting:

RADIUS accounting enables network devices to report client session details (e.g., IP addresses, session duration, bandwidth usage) to CPPM.

Interim updates ensure CPPM receives ongoing updates about the client’s session, enabling accurate tracking.

Option Analysis:

Option A: Incorrect. Syslog logging sends general system logs, not client session details.

Option B: Incorrect. Dynamic authorization (CoA) handles session changes but does not provide usage tracking.

Option C: Correct. RADIUS accounting with interim updates tracks client IP addresses and bandwidth utilization.

Option D: Incorrect. IF-MAP interfaces are used for metadata sharing, not for RADIUS-based tracking.

Packet Capture in Aruba Central:

Aruba Central provides tools for remote packet captures directly from the APs.

On the "Security" page for the AP, you can initiate a packet capture session, specifying the client device and capture duration.

The traffic is captured into a PCAP file, which can be downloaded and analyzed using tools like Wireshark.

Option Analysis:

Option A: Incorrect. While possible via CLI, Aruba Central provides a simpler method for packet captures.

Option B: Correct. Aruba Central’s "Security" page allows you to capture and export client traffic efficiently.

Option C: Incorrect. The "Live Events" page focuses on monitoring events, not packet captures.

Option D: Incorrect. Port mirroring on the switch captures AP traffic but requires more manual configuration and does not isolate client-specific wireless traffic easily.

To assign managers to groups on the AOS-CX switch by name using HPE Aruba Networking ClearPass Policy Manager (CPPM) as a TACACS+ server, you should add the Aruba

service to the TACACS+ enforcement profile and set the Aruba-Admin-Role to the group name. This configuration ensures that the appropriate administrative roles are assigned to managers based on their group membership, allowing for role-based access control on the AOS-CX switches.

User-Based Tunneling (UBT) with VRRP:

UBT allows traffic from authenticated users to be tunneled to an HPE Aruba Networking gateway.

In the case of VRRP, where two gateways are configured for redundancy, the AOS-CX switch will always send the traffic to the primary gateway defined in the UBT zone configuration.

The VRRP state (master/backup) does not impact the UBT decision; the UBT primary configuration takes precedence.

Option Analysis:

Option A: Incorrect. UBT does not strictly follow the VRRP master; it adheres to the UBT primary gateway configuration.

Option B: Correct. The switch tunnels all traffic to the primary gateway configured in the UBT zone.

Option C: Incorrect. UBT does not load-share traffic between gateways.

Option D: Incorrect. UBT uses the primary gateway configured in the UBT zone, not dynamically determined active devices.

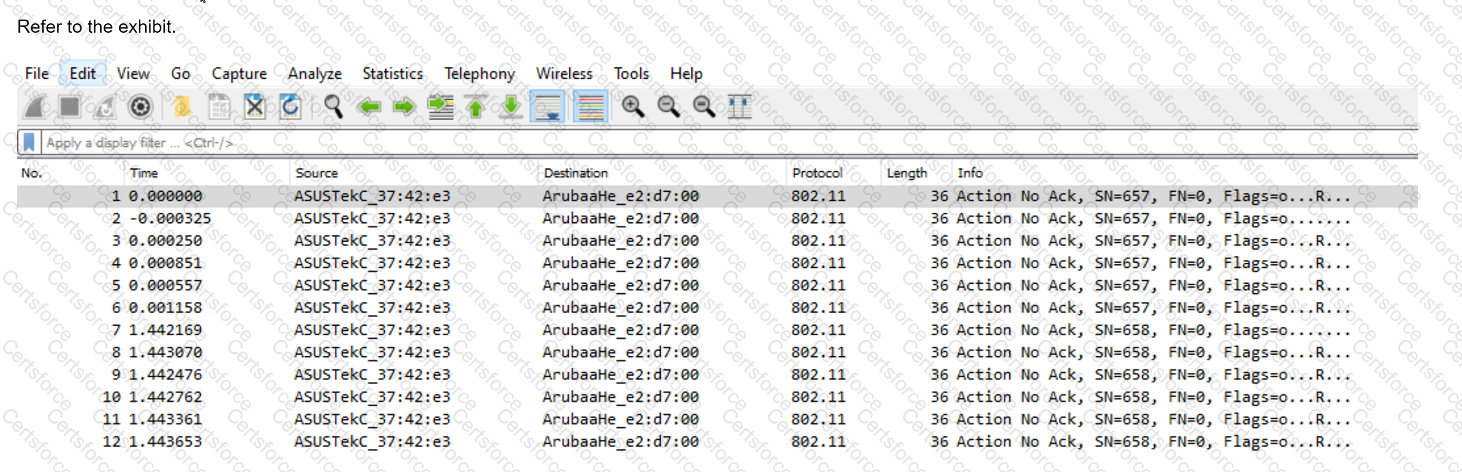

To better interpret the packets shown in the Wireshark capture, you should choose to decode UDP port 5555 packets as ARUBA_ERM and set the Aruba ERM Type to 0. This configuration will allow Wireshark to properly decode and display the Aruba-specific encapsulated remote mirroring (ERM) packets, providing a clearer understanding of the traffic.

1.Decoding Protocols: Selecting the correct protocol decoding in Wireshark ensures that the captured packets are interpreted correctly, displaying the relevant information.

2.Aruba ERM: The packets in the capture are likely encapsulated remote mirroring (ERM) packets specific to Aruba, which require proper decoding settings in Wireshark.

3.Clear Interpretation: By setting the Aruba ERM Type to 0 and decoding the packets as ARUBA_ERM, you can view the encapsulated data accurately.

802.1X Authentication Modes:

Client Auth-Mode: Requires each connected endpoint to authenticate individually using 802.1X.

Device Auth-Mode: Allows the port to authenticate a device, such as an AP, as a whole. This mode works when the device bridges traffic (e.g., AP bridging SSID traffic).

AP Role Configuration:

Since the AP bridges traffic from multiple clients, you must configure the AP role to use device auth-mode.

Meanwhile, the ports on edge switches can remain in client auth-mode to enforce 802.1X for individual client connections.

Option Analysis:

Option A: Correct. This ensures the AP itself authenticates with device auth-mode, while edge ports remain in client auth-mode.

Option B: Incorrect. APs require device auth-mode for bridging, not client auth-mode.

Option C: Incorrect. Device auth-mode on all ports would not meet the security policy for clients.

Option D: Incorrect. Leaving all ports in device auth-mode does not meet the policy for 802.1X on edge ports.

If VIA clients are not receiving IP addresses from the configured VPN pool, one setting to check is whether the pool is associated with the role to which the VIA clients are being assigned. The association between the IP pool and the role ensures that clients assigned to that role receive IP addresses from the correct pool.

1.Role Association: Each role can be associated with a specific IP pool, ensuring that clients assigned to the role receive addresses from the intended pool.

2.IP Allocation: Proper configuration of the IP pool and its association with the role is crucial for correct IP address allocation.

3.VIA Configuration: Ensuring that all settings, including IP pool associations, are correctly configured, facilitates seamless client connectivity.

RAPIDS Ad-Hoc Detection:

The alert "Detect ad-hoc using Valid SSID" indicates that a device is broadcasting an SSID that matches a valid network SSID in ad-hoc mode. This can be an indication of an infrastructure attack or misconfiguration.

Next Steps:

Use Aruba Central floorplans or AP location data to identify the physical area where the offending device is detected.

Locate and investigate the device to determine if it is malicious or simply misconfigured.

Option Analysis:

Option A: Incorrect. While tuning thresholds is useful for reducing false positives, this step does not directly address a potential threat.

Option B: Incorrect. Faulty drivers can cause similar behavior, but this step is not immediately actionable without locating the device first.

Option C: Correct. Floorplans or AP identities help locate the threat's physical area for further investigation.

Option D: Incorrect. RAPIDS focuses on detecting devices via SSID and MAC, not IP addresses, making this approach less relevant.
