Pass the HP Aruba Certified Switching Associate (ACSA) V1 HPE6-A72 Questions and answers with CertsForce

 HP Exams      Go to Exam Detail      Get Premium Access
Viewing page 2 out of 4 pages
Viewing questions 11-20 out of questions
Questions # 11:

What command will save your configuration on an Aruba AOS-CX switch so that your changes automatically load on next reboot?

Options:
A.

copy running-config checkpoint startup-config

B.

copy startup-config running-config

C.

copy running-config initial-checkpoint

D.

copy running-config default

Questions # 12:

Which field in the IPv4 header indicates whether the IP packet carries TCP or UDP traffic?

Options:
A.

Protocol

B.

IHL

C.

TTL

D.

Identification

Questions # 13:

What are two available options as part of a DHCP offer message? (Choose two.)

Options:
A.

SSID

B.

DNS server IP

C.

Subnet Mask

D.

LLDP-MED

E.

VLANID

Questions # 14:

What command displays information regarding the secondary image installed on an AOS-CX switch?

Options:
A.

show secondary

B.

show version detail

C.

show version

D.

show images

Questions # 15:

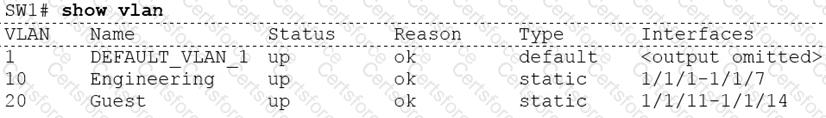

Refer to the exhibit.

Question # 15

The above command was applied to an Aruba AOS-CX 6300M 24-port switch with 4-port SFP56 uplinks. All ports are set as access switchports.

Which ports carry VLAN 1 traffic?

Options:
A.

1/1/8, 1/1/10, 1/1/5-1/1/24

B.

1/1/1-1/1/28

C.

1/1/1-1/1/24

D.

1/1/8-1/1/10, 1/1/5-1/1/28

Questions # 16:

Which command will suppress LLDP messages from egressing on a given port while still allowing LLDP to be enabled on the switch?

Options:
A.

switch(config-if)# no lldp interface (port) transmit

B.

switch(config-if)# no lldp transmit

C.

switch(config-if)# no lldp receive

D.

switch(config)# no lldp

Questions # 17:

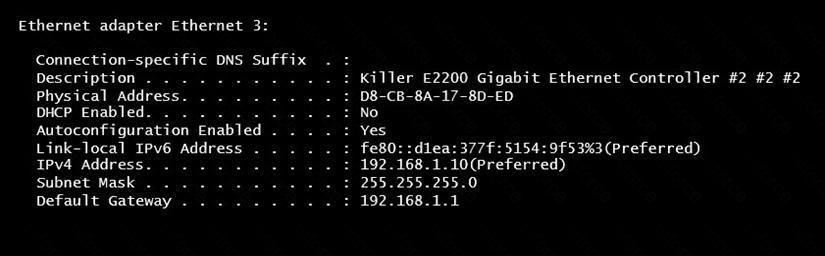

Refer to the exhibit.

Question # 17

What is the correct binary conversion of the last two hexadecimal characters of the physical address?

Options:
A.

1101 1000

B.

1110 1101

C.

1001 1111 0101 0011

D.

1000 1101 1110 1101

Questions # 18:

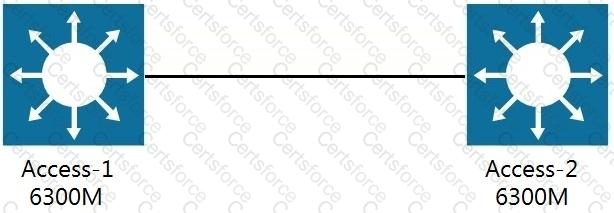

Refer to the exhibit.

Question # 18

You are in the process of configuring VSF between Access-1 and Access-2. Access-1 has been configured as the VSF Master.

What is a valid configuration for Access-2 to join the VSF stack?

Options:
A.

Access-2# configure

Access-2(config)# vsf member 1 Access-2(config)# vsf renumber-to 2 Access-2(vsf-member-1)# link 2 2/1/28 Access-2(vsf-member-1)# exit

This will save the VSF configuration and reboot the switch. Do you want to continue (y/n)? y

B.

Access-2# configure

Access-2(config)# vsf member 2 Access-2(vsf-member-1)# link 2 1/1/28 Access-2(vsf-member-1)# exit

This will save the VSF configuration and reboot the switch. Do you want to continue (y/n)? y

C.

Access-2# configure

Access-2(config)# vsf member 2 Access-2(vsf-member-1)# link 1 1/1/28 Access-2(vsf-member-1)# exit

This will save the VSF configuration and reboot the switch. Do you want to continue (y/n)? y

D.

Access-2# configure

Access-2(config)# vsf member 1 Access-2(vsf-member-1)# link 1 1/1/28 Access-2(vsf-member-1)# exit

Access-2(config)# vsf renumber-to 2

This will save the VSF configuration and reboot the switch. Do you want to continue (y/n)? y

Questions # 19:

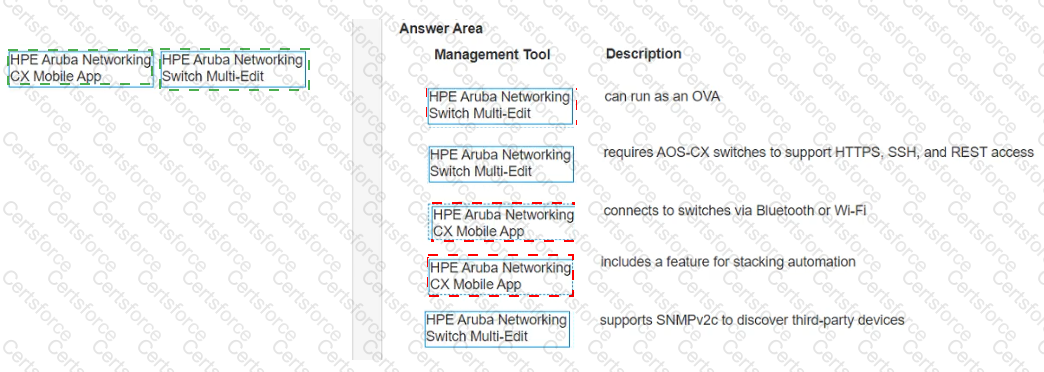

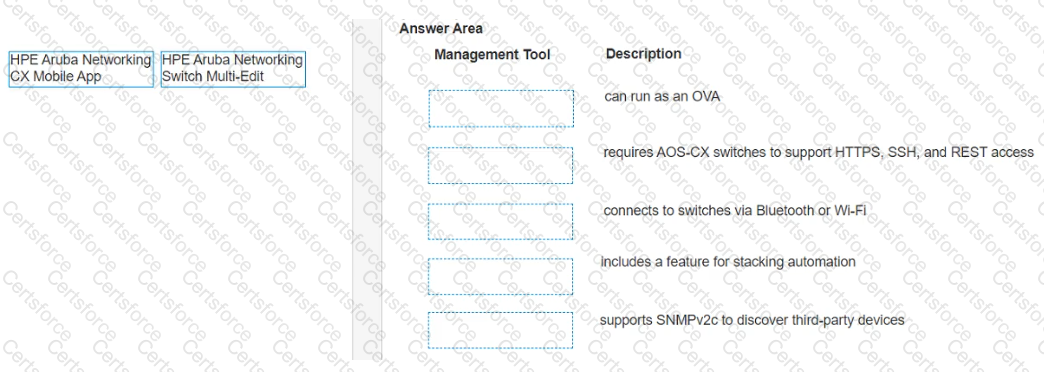

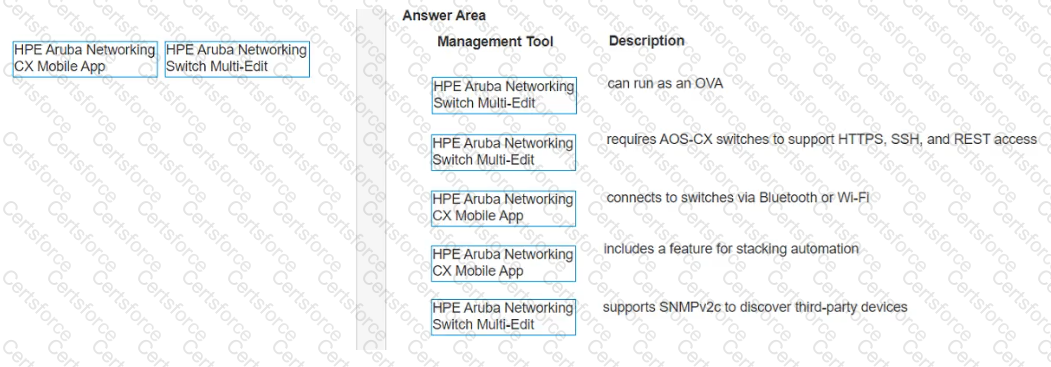

Match each description to the correct management tool tor AOS-CX.

Question # 19

Questions # 20:

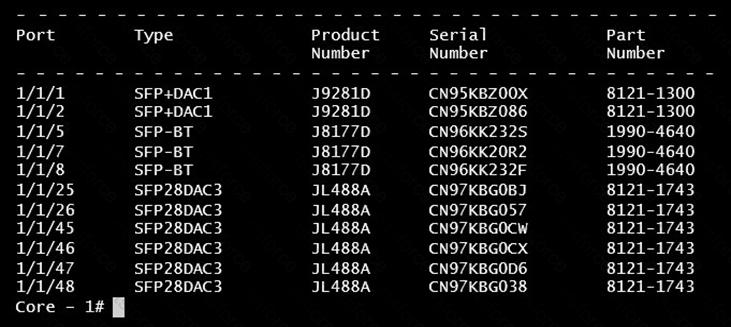

Refer to the exhibit.

Question # 20

What command (output shown above) gives the optics serial number and part number information?

Options:
A.

show interface physical

B.

show interface transceiver

C.

show inventory

D.

show interface optics

Viewing page 2 out of 4 pages
Viewing questions 11-20 out of questions
