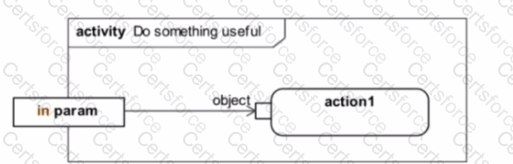

In the given UML activity diagram, "action 1" is an action that executes the classifier behavior (intrinsic behavior) of an instance. The correct UML action that represents this behavior is:
A. CallBehaviorActionis used to call a behavior directly, but not necessarily the classifier behavior of the input object.
B. CallOperationActionis used to call an operation, which is not the intrinsic behavior of an instance.
C. StartObjectBehaviorActionis the correct answer. This action starts the execution of the classifier behavior of an object.
D. CallClassifierBehaviorActionis not a standard UML action.
References:
UML Specification: Actions section, which explains the various types of actions including the StartObjectBehaviorAction.
Further details about actions that initiate behaviors of objects can be found in the UML 2.5 Documentation, specifically in the chapters discussing Actions in Activity diagrams.
