HP Aruba Data Center Network Specialist Exam HPE2-W09 Question # 30 Topic 4 Discussion
HPE2-W09 Exam Topic 4 Question 30 Discussion:
Question #: 30
Topic #: 4

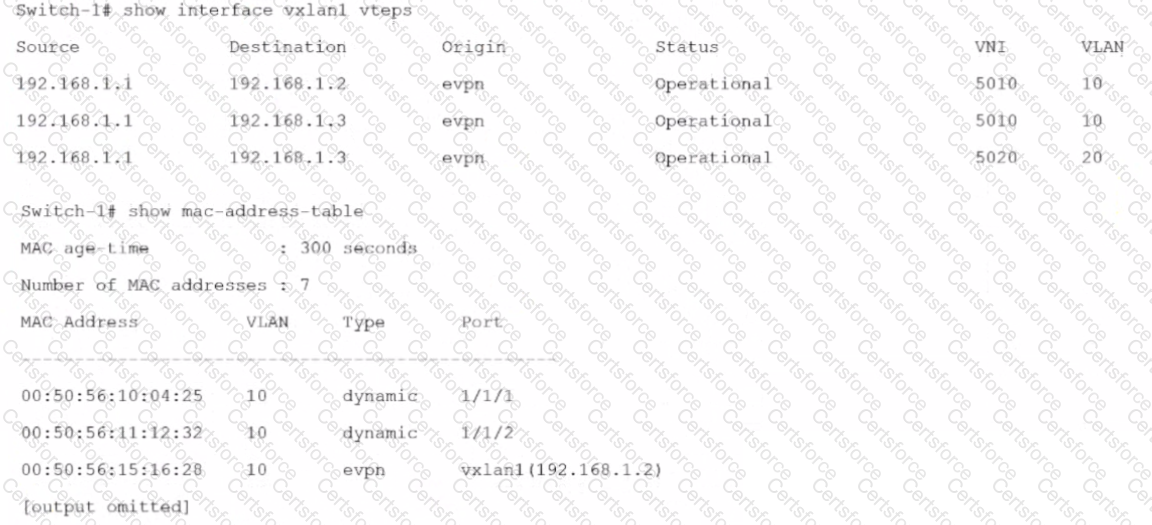

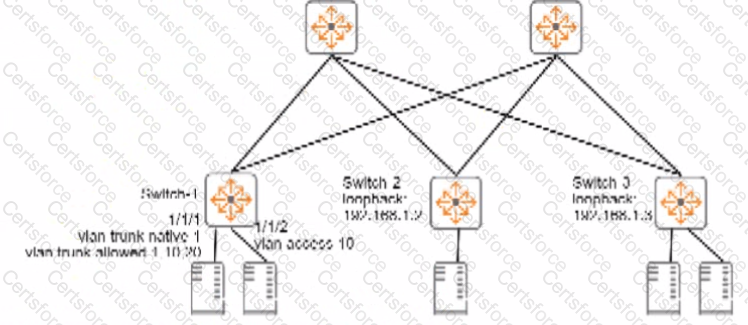

Refer to the exhibits.
Is this how the switch handles the traffic?
Solution: A frame with destination MAC address, 00:50:56:00:00:03 arrives with a VLAN 10 tag on 1/1//1 on Switch-1. Switch-1 switches the frame out interface 1/1/2 without VXLAN.
VXLAN is a tunneling protocol that encapsulates layer 2 traffic over an IP network using VXLAN Network Identifiers (VNIs) to identify different layer 2 segments. VXLAN Tunnel Endpoints (VTEPs) are devices that perform the encapsulation and decapsulation of VXLAN packets. According to the exhibit, Switch-1 and Switch-2 are VTEPs that use VNI 10010 to map VLAN 10 traffic. Therefore, when Switch-1 receives a frame with destination MAC address 00:50:56:00:00:03 and VLAN 10 tag on interface 1/1/1, it should encapsulate the frame with a VXLAN header that contains VNI 10010 and send it as a unicast packet to Switch-2’s loopback address (10.1.1.2) over the IP network1. Switch-1 should not switch the frame out interface 1/1/2 without VXLAN, as this would violate the VNI mapping and cause layer 2 loops. Therefore, this is not how the switch handles the traffic. https://networklessons.com/cisco/ccnp-encor-350-401/introduction-to-virtual-extensible-lan-vxlan
