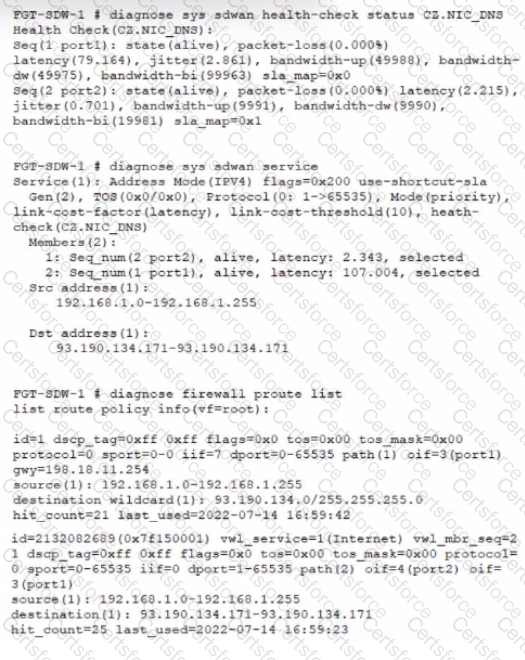

Refer to the exhibit, which shows diagnostic output.
A customer reports that ICMP traffic flow from 192.168.1.11 to 93.190.134.171 is not corresponding to the SD-WAN setup.
What is the problem in this scenario?
SD-WAN Rule is matching only DNS traffic.
Port1 is used because it has more available bandwidth.
Traffic is matched by policy route.
Route for the destination IP is missing in the routing table.
