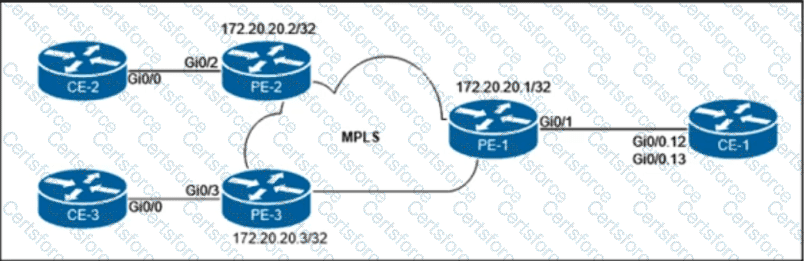

Refer to the exhibit.
The customer that owns the CE-1, CE-2, and CE-3 routers purchased point-to-point E-Line services from the Carrier Ethernet provider. The service provider is delivering multiplexed UNI at the customer HQ location on PE-1 and untagged UNIs at the PE-2 and PE-3 locations. Additionally, the customer provided these VLAN to EVC mapping requirements:
• EVC 1 between CE-1 and CE-2 must be provisioned with C-VLAN 12 at the HQ location.
• EVC 2 between CE-1 and CE-3 must be provisioned with C-VLAN 13 at the HQ location.

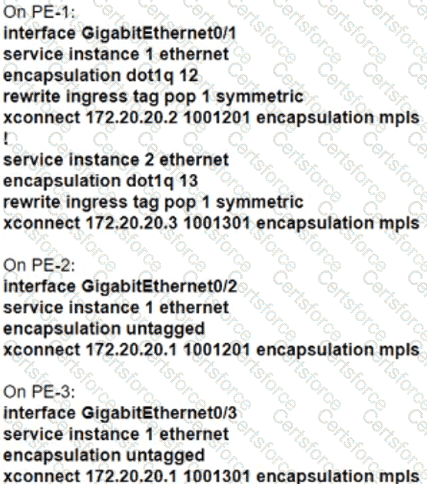

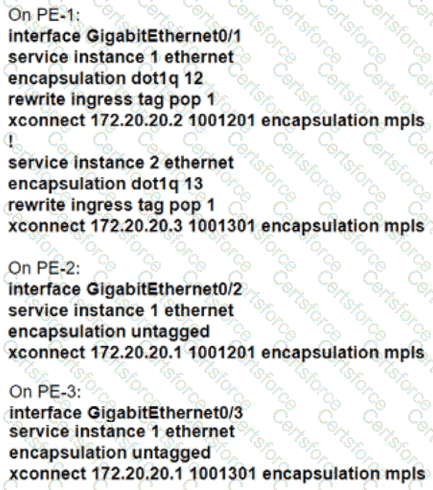

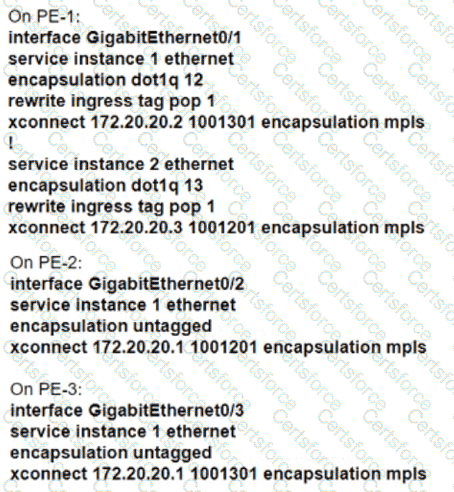

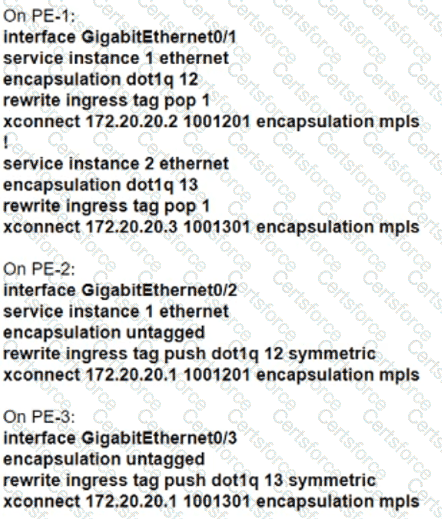

Which configuration must the network engineer implement on the PE routers to provide end-to-end Carrier Ethernet service to the customer?
