300-615 Exam Topic 2 Question 12 Discussion:
Question #: 12
Topic #: 2

300-615 Question 12

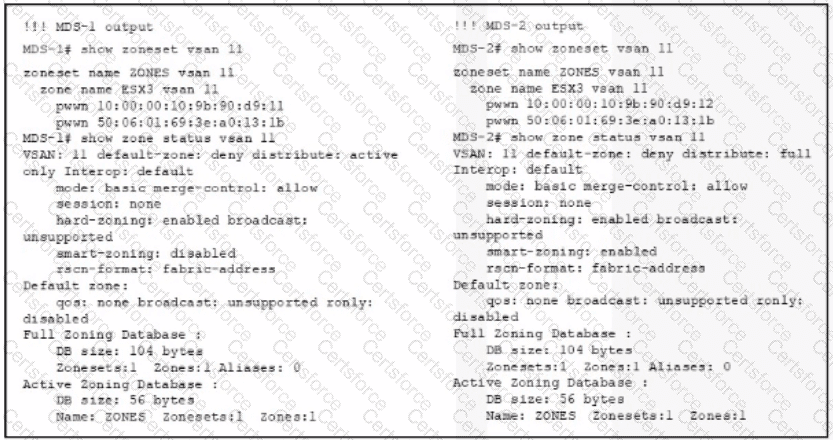

Refer to the exhibit. A SAN engineer connected two Cisco MDS 9000 Series Switches using the fc1/1 interface. The interface is a trunk for VSANs 10 and 11. After the port was connected and configured, a syslog message was displayed stating that VSAN 11 is isolated because of a zone merge failure, but VSAN 10 was working as expected. Because VSAN 10 is used for the production network, its traffic must be uninterrupted by maintenance activities. Additionally, the SAN fabric is expected to grow in the future, so the available TCAM space on the switches must be saved. Which command set resolves the issue and preserves the available TCAM space?


A.

MDS-2(config)# zone smart-zoning enable vsan 11

MDS-2# zoneset export interface fc1/1 vsan 11

B,

MDS-1(config)# zone smart-zoning enable vsan 11

MDS-1# zoneset import interface fc1/1 vsan 11


B.

MDS-2# zoneset export interface fc1/1 vsan 11

MDS-2(config)# int fc1/1 ; no switchport trunk allowed vsan 11

MDS-2(config-if)# switchport trunk allowed vsan add 11


C.

MDS-1# zoneset import interface fc1/1 vsan 11

MDS-1(config)# zoneset distribute full vsan 11

MDS-1(config)# int fc1/1 ; shutdown ; no shutdown
