Cisco Implementing Cisco Service Provider Advanced Routing Solutions 300-510 Question # 76 Topic 8 Discussion

Cisco Implementing Cisco Service Provider Advanced Routing Solutions 300-510 Question # 76 Topic 8 Discussion

300-510 Exam Topic 8 Question 76 Discussion:
Question #: 76
Topic #: 8

300-510 Question 76

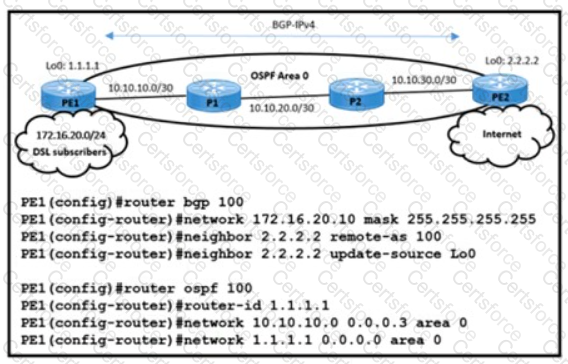

Refer to the exhibit The engineering team noticed route disruptions when DSL subscriber 172.16.20.10 goes offline. In this service provider environment:

The OSPF backbone area is configured to advertise loopback prefixes

The PE routers are running BGP-IPv4 address family in a BGP-free core topology.

The DSL subscriber IP subnet 172.16.20.10/32 is redistributed in BGP on PE1

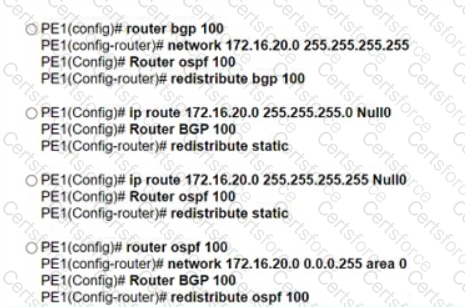

Which configuration on PE1 resolves the issue?

300-510 Question 76


A.

Option A


B.

Option B


C.

Option C


D.

Option D
