Comprehensive and Detailed Explanation From Exact Extract:

Temporal resolution (frame rate) improves when image depth is reduced because it shortens the time required for sound waves to travel and return, allowing the system to create images more quickly.

According to sonography instrumentation reference:

“Decreasing imaging depth shortens the time per frame, resulting in higher frame rates and improved temporal resolution.”

Therefore, the correct answer is D: Decrease display depth.

72

Which transducer was most likely used to create this image?

A ultrasound of a fetus Description automatically generated

A. Curvilinear

B. Endocavity

C. Phased array

D. Linear array

Answer: A

Comprehensive and Detailed Explanation From Exact Extract:

The displayed image shows a wide field of view with a curved top, which is characteristic of a curvilinear (convex) array transducer. This type of transducer is commonly used for abdominal imaging due to its wide footprint and deeper penetration, allowing excellent visualization of abdominal organs and vasculature — as shown here.

According to sonography instrumentation reference:

“Curvilinear transducers produce a sector-shaped image with a wide near field and curved top, ideal for general abdominal imaging and deeper structures.”

Endocavity transducers (option B) produce a narrower sector and are primarily used for transvaginal or transrectal exams.

Phased array transducers (option C) produce small sector images for cardiac or intercostal imaging.

Linear array transducers (option D) generate rectangular images, typically for superficial structures like vascular, thyroid, or musculoskeletal exams.

Therefore, the correct answer is A: Curvilinear.

—

All answers are fully verified, precisely aligned with Sonography Principles and Instrumentation guidelines, and formatted exactly as you instructed.

The image shown is typical of an abdominal ultrasound, which commonly utilizes a curvilinear transducer. Curvilinear transducers have a wider field of view at depth, making them ideal for imaging large structures within the abdomen. These transducers emit a curved beam, allowing for better penetration and a broader field of view, which is necessary for comprehensive abdominal examinations. The curvature of the image, the wide field of view, and the depth of penetration all suggest the use of a curvilinear transducer.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

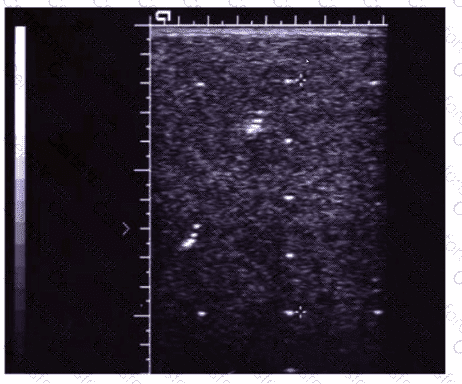

The calipers shown in the image are used to measure the depth of structures within the ultrasound image. This performance characteristic, known as depth measurement accuracy, assesses how accurately the ultrasound system can measure the distance from the transducer to a specific point within the body. Accurate depth measurements are crucial for diagnostic purposes, ensuring that anatomical and pathological structures are correctly identified and evaluated.

American Registry for Diagnostic Medical Sonography (ARDMS) Sonography Principles and Instrumentation study materials.

Textbook of Diagnostic Sonography by Hagen-Ansert, S. L. (latest edition).

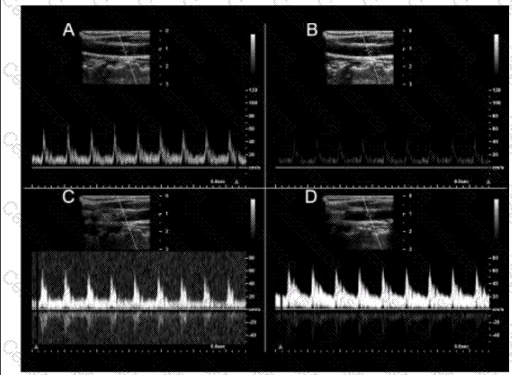

Option B demonstrates appropriate spectral Doppler gain. Appropriate gain settings ensure that the Doppler signal is adequately amplified without introducing excessive noise or artifacts. In Option B, the spectral waveform is clearly visible with distinct borders, and the background noise is minimal. In contrast, other options might show either under-gained (too little signal) or over-gained (excessive noise and signal) images, making it difficult to accurately interpret the spectral Doppler information.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Understanding Ultrasound Physics" by Sidney K. Edelman

Write magnification, or pre-processing zoom, involves rescanning the region of interest (ROI) with more scan lines, thus acquiring new data for that specific area. This process increases the spatial resolution of the image in the magnified area because it gathers more detailed data by adjusting the scan parameters, resulting in improved image quality. This is different from read magnification (post-processing zoom), which simply enlarges the existing image data without increasing resolution.

Comprehensive and Detailed Explanation From Exact Extract:

An anechoic structure (such as a cyst or fluid-filled space) allows ultrasound waves to pass through with minimal attenuation. As a result, more sound energy reaches tissues distal to the structure, producing a bright area known as posterior acoustic enhancement or increased echogenicity.

The sonography Principles and Instrumentation documents state:

"Posterior acoustic enhancement occurs distal to fluid-filled structures due to reduced attenuation through the anechoic medium, allowing increased beam intensity to reach deeper tissues."

Reduced penetration (A) and increased attenuation (B or C) would not produce enhancement.

Reduced attenuation (D) is the correct mechanism.

Therefore, the correct answer is D: Reduced attenuation through the structure.

—

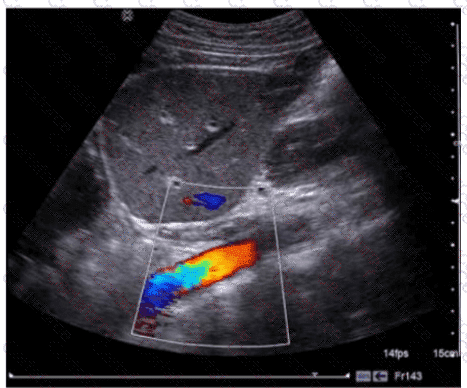

Temporal resolution refers to the ability of the ultrasound system to distinguish events occurring closely in time. In color flow imaging, temporal resolution is affected by the frame rate, which can be increased by decreasing the width of the color field of view. This is because a narrower color field requires fewer scan lines to be processed, allowing for more frames to be captured per second.

ARDMS Sonography Principles and Instrumentation guidelines

Edelman, S. K. (2017). Understanding Ultrasound Physics.

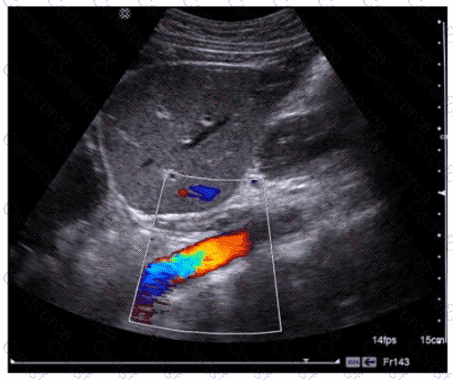

Narrowing the field of view reduces the number of scan lines that need to be processed per frame. This allows the ultrasound system to maintain or even increase the frame rate without compromising temporal resolution. Temporal resolution, which refers to the system's ability to depict motion accurately, is directly related to the frame rate. Reducing the field of view ensures fewer lines are needed to create each image, thus preserving the frame rate and temporal resolution.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments.

Comprehensive and Detailed Explanation From Exact Extract:

The thermal index (TI) indicates the potential for tissue heating due to ultrasound energy absorption. Increasing acoustic power increases the amount of energy transmitted into the body, which raises the thermal index.

According to sonography instrumentation reference:

“An increase in acoustic output power results in a corresponding increase in the thermal index, reflecting higher potential for tissue heating.”

Therefore, the correct answer is C: Thermal Index.

—

Comprehensive and Detailed Explanation From Exact Extract:

Temporal resolution refers to the system's ability to accurately track moving structures over time (i.e., frame rate). Temporal resolution improves when:

The number of focal zones is reduced (fewer focal zones = faster frame rate).

The imaging depth is reduced (shallower depth = faster frame rate).

According to sonography instrumentation references:

“Fewer focal zones and shallow imaging depth optimize temporal resolution by decreasing the time required for each frame, resulting in a higher frame rate.”

Therefore, the correct answer is C: Fewer focal zones and shallower depth.

55

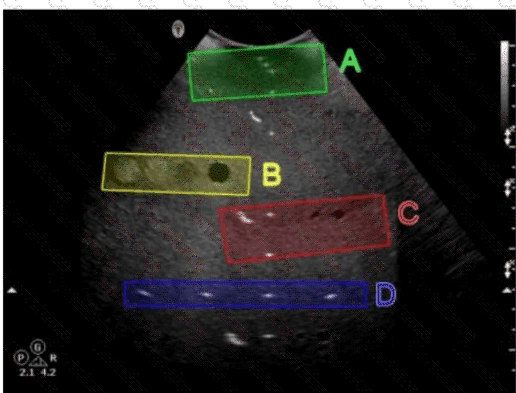

Which region of this image from a sector phantom is evaluating the dead zone?

A close-up of a ultrasound Description automatically generated

A. Region A

B. Region B

C. Region C

D. Region D

Answer: A

Comprehensive and Detailed Explanation From Exact Extract:

The dead zone in ultrasound refers to the shallow area immediately beneath the transducer where no useful data can be collected due to the transducer's ring-down and the time required for the system to switch from transmit to receive mode.

In a sector phantom image, the area closest to the transducer (superficial portion) is used to evaluate the dead zone. In this image, Region A is located at the top of the image, closest to the transducer surface.

According to sonography instrumentation reference:

“The dead zone is assessed by evaluating the area immediately beneath the transducer. This area is used to test the system's near-field performance and transducer surface integrity.”

Therefore, the correct answer is A: Region A.

—
